Grounding point G29: Notes

Location

4D/CV:  In luggage compartment below right-hand lamp cluster.

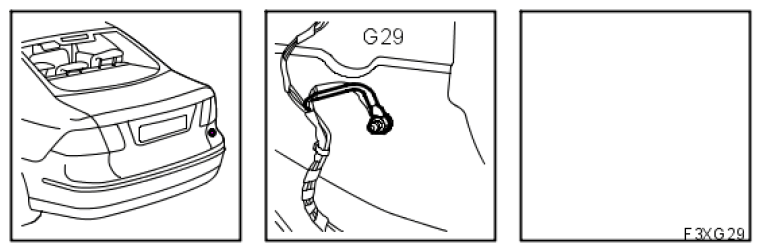

Fig 1: Identifying Grounding Point G29 - 4D/CV

Courtesy of SAAB-SCANIA OF AMERICA, INC.

4D

Fig 2: Grounding Point G29 (4D) - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

Fig 3: Grounding Point G29 (CV) - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D:  On right-hand rear luggage compartment floor support.

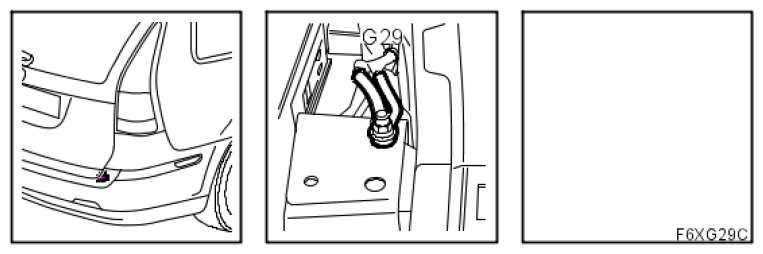

Fig 4: Identifying Grounding Point G29 (5D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
