Grounding point G2, B284: Notes

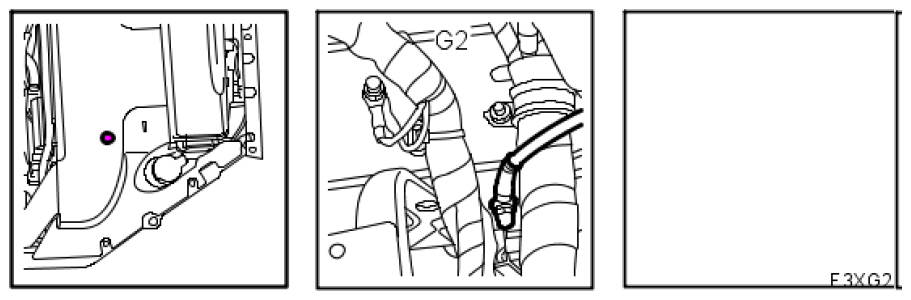

Fig 1: Identifying Grounding Point G2, B284

G05172295

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: On the side of the LH structural member near the connector console
