Ignition switch

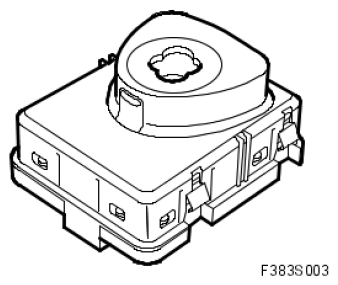

Fig 1: Identifying Ignition Switch
G05056850Courtesy of SAAB-SCANIA OF AMERICA, INC.
IGNITION SWITCH REFERENCE

Communication cable Pin 2
+X Pin 3
Ground Pin 4
+30 Pin 5
+B Pin 6
+15 Pin 12
Key positions LOCK, OFF, ON and ST
Illumination LEDs
Key inhibitor Solenoid
