Body Control Module (707)

Location: in the dashboard electrical distribution unit

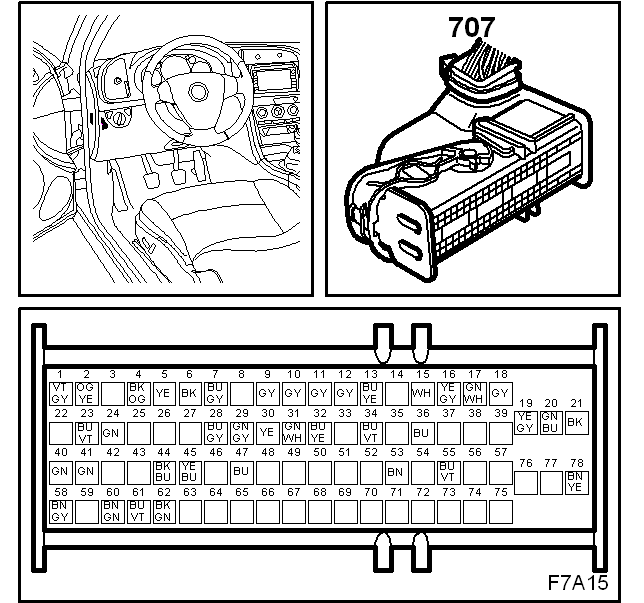

Fig 1: Identifying Body Control Module (707)

G05174208

Courtesy of SAAB-SCANIA OF AMERICA, INC.
