To remove

WARNING: This page is about a different variant/trim than selected.
  1. Man:  Put the gear lever in neutral. Auto:  Put the selector lever in position P. Remove the key from the ignition switch.
  2. Remove SPARK PLUG .
  3. Remove relay no. 8 in the Underhood electrical center 342.

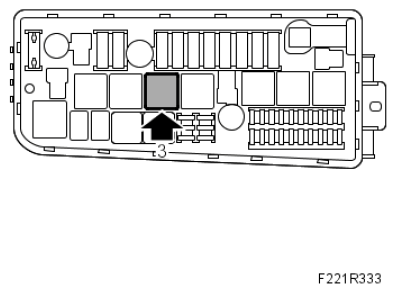

    Fig 1: Removing Relay No. 8
    G05053739Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Connect 83 93 886 Diagnostics cable, LH system to relay holder sleeves 87 and 30. Make sure that the switch is in the OFF position.
    Fig 2: Connecting Diagnostics Cable, LH System To Relay Holder Sleeves 87 & 30
    G05053740Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the Motometer compression tester for petrol engines to cylinder 1 with a new card.
    Fig 3: Installing Motometer Compression Tester
    G05053741Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Run the starter motor using the test lead switch until the needle stops rising.
  7. Repeat the procedure on the other cylinders. For minimum compression, see PISTONS .
