To remove

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box. See GLOVE BOX .

    Remove the side trim on the Centre console.

    Fig 1: Identifying Side Trim
    G05044798Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the recirculation flap screws. Pull the motor straight down.

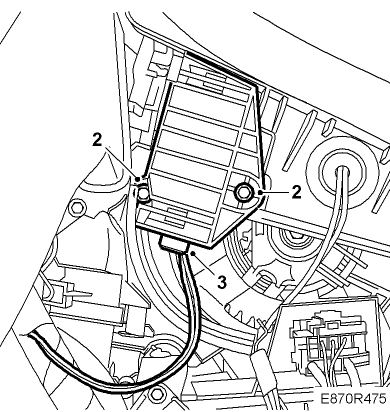

    Fig 2: Illustration For Step 2 To 3
    G05044799Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the connector.
