To remove

WARNING: This page is about a different car, the 2008 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radio receiver:
Radio receiver, TMC, 4D

Radio receiver, TMC, 5D

Radio receiver, TMC, CV

Radio receiver, satellite radio, 4D

Radio receiver, satellite radio, 5D

Radio receiver, satellite radio, CV
Remove the console:

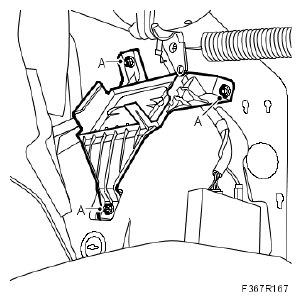

4D: Remove the nuts (A) and the screw (B).

Fig 1: Identifying Radio Receiver Console Nuts - 4D
Courtesy of SAAB-SCANIA OF AMERICA, INC.

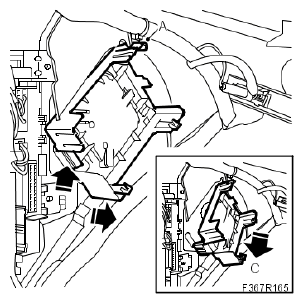

5D: Remove the wiring harness clip (A) and press in the console locking clip (B), pull it back and lift out the console (C).

Fig 2: Removing Radio Receiver Console - 5D
Courtesy of SAAB-SCANIA OF AMERICA, INC.

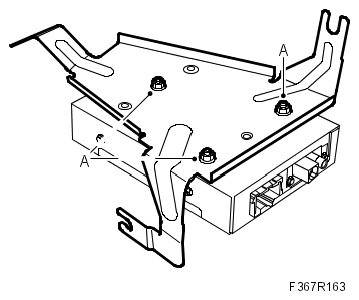

CV: Remove the nuts.

Fig 3: Identifying Radio Receiver Console Nuts - CV
Courtesy of SAAB-SCANIA OF AMERICA, INC.
