Unit, audio/navigation (635)

WARNING: This page is about a different car, the 2008 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  in center console

K14

K16

K16B

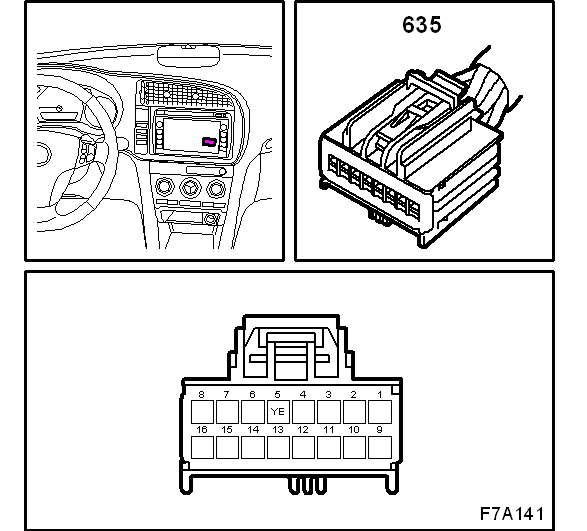

Fig 1: Identifying Audio/Navigation Unit And Connector (635)
G05173037Courtesy of SAAB-SCANIA OF AMERICA, INC.
