Control Module Outputs, Bus

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

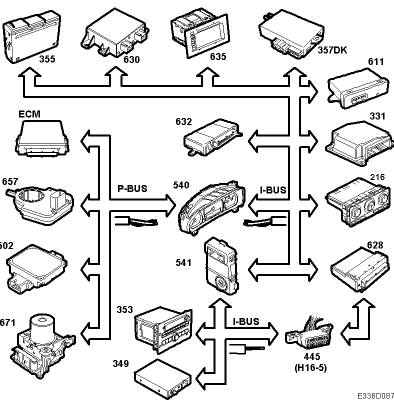

Fig 1: Identifying Control Module Outputs (BUS)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Text message (used by SID, 541), see ACC SENDS THE FOLLOWING INFORMATION .
Sound (used by SID, 541), see ACC SENDS THE FOLLOWING INFORMATION .
A/C (used by EDC16/DICE, 628), see ACC SENDS THE FOLLOWING INFORMATION .
Electric rear window (used by DICE, 628), see ACC SENDS THE FOLLOWING INFORMATION .
Diagnostic communication (DICE, 628/diagnostic tool), see ACC SENDS THE FOLLOWING INFORMATION .
