Grounding point G3, 5D: Notes

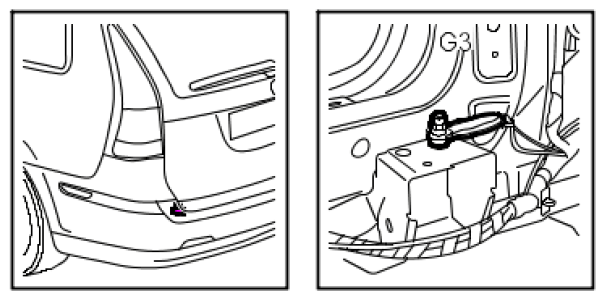

Fig 1: Identifying Grounding Point G3, 5D
G05171696Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In luggage compartment on rear left luggage compartment floor support.

The grounding point is connected with grounding point G29 via the boot electrical centre 701.
