Grounding point G34P: Notes

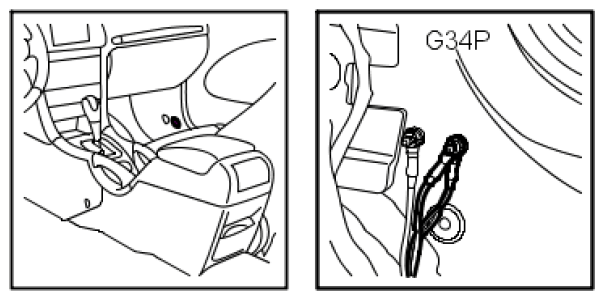

Fig 1: Identifying Grounding Point G34P

G05174952

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: By the floor below the right A-pillar (black tape)
