Microswitch, bootlid/tailgate: Fitting

  1. Fit the microswitch.

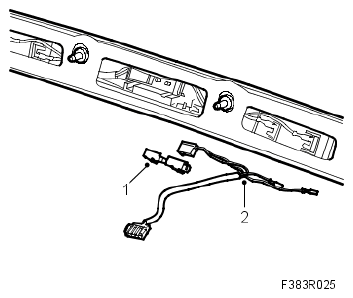

    Fig 1: Illustration For Steps 1-2
    G05056780Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the flat pin connector. Use a screwdriver to lift up the seal.
  3. Fit the catch securing the microswitch. Make sure it engages properly.
  4. Fit the molding to the bootlid.
    Fig 2: Illustration For Steps 4-6
    G05056781Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the nuts securing the molding to the bootlid.
  6. Plug in the microswitch connector.
  7. Fit the bootlid trim .
    Fig 3: Illustration For Step 7
    G05056782Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Functional check
