Automatic Transmission Shift Lock Control Schematics

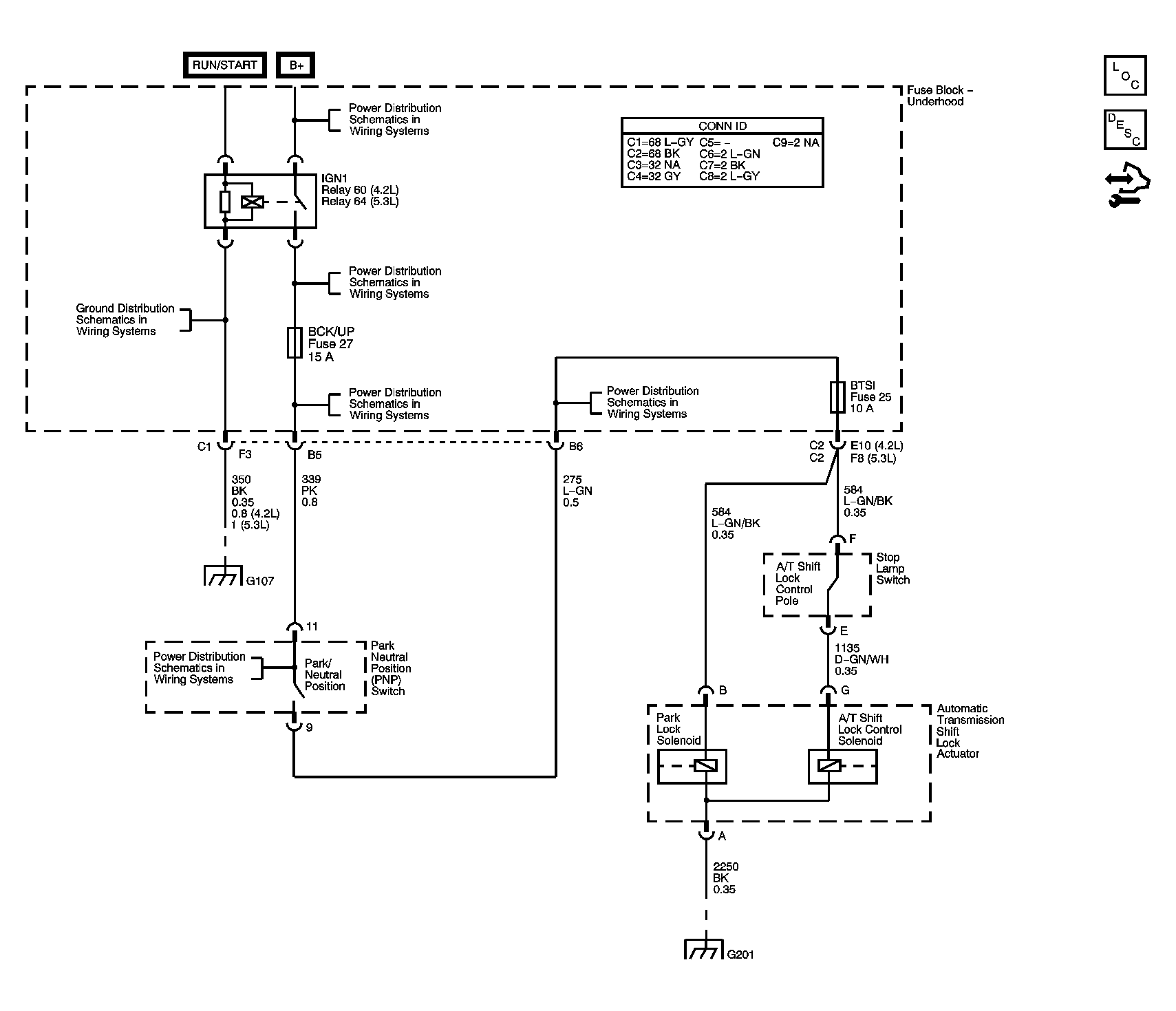

Fig 1: A/T Shift Lock Wiring Diagram

GM1621855

Courtesy of GENERAL MOTORS CORP.
