Body Control System Schematics

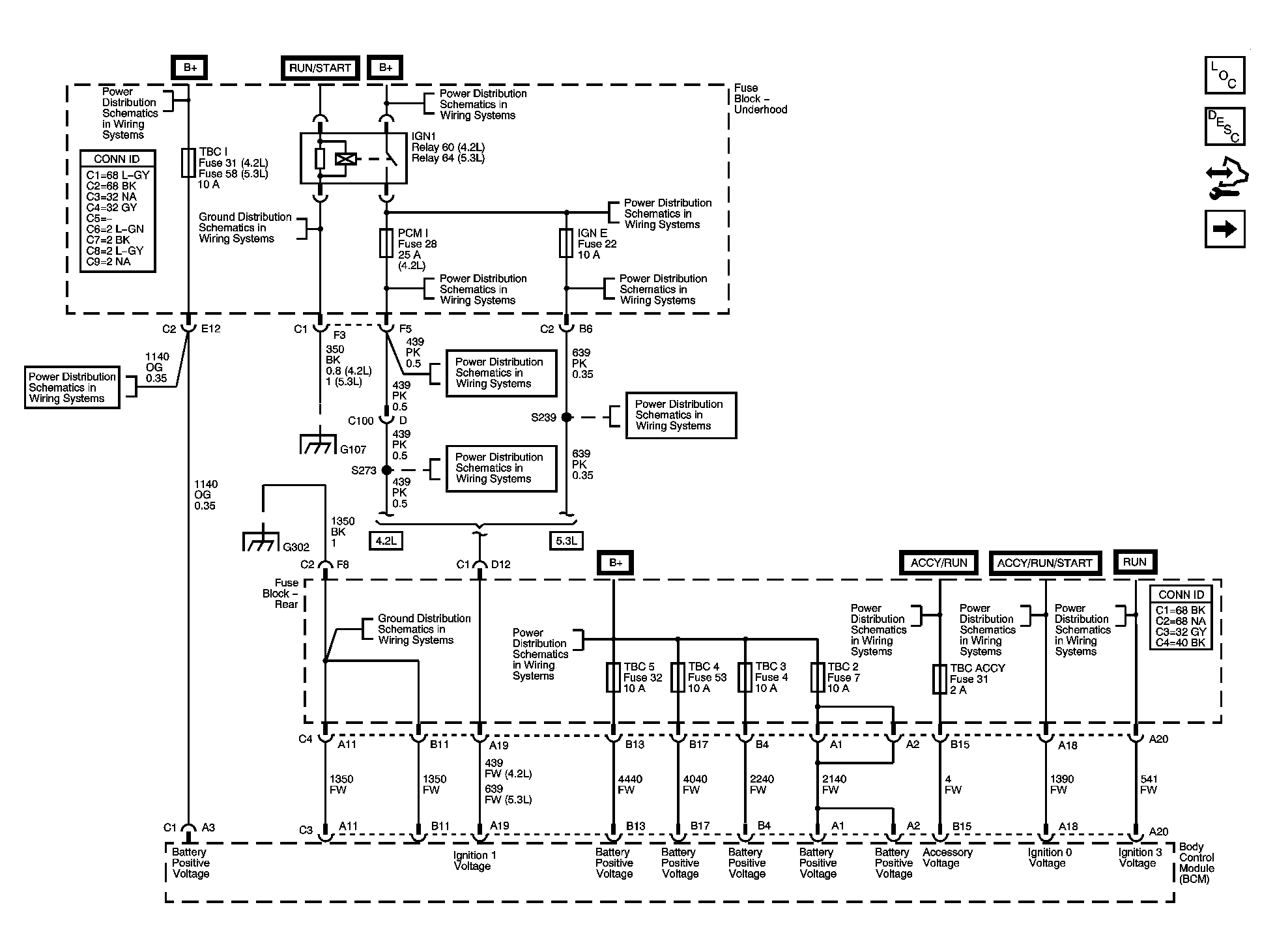

Fig 1: Module Power and Ground Wiring Diagram
GM1630466Courtesy of GENERAL MOTORS CORP.

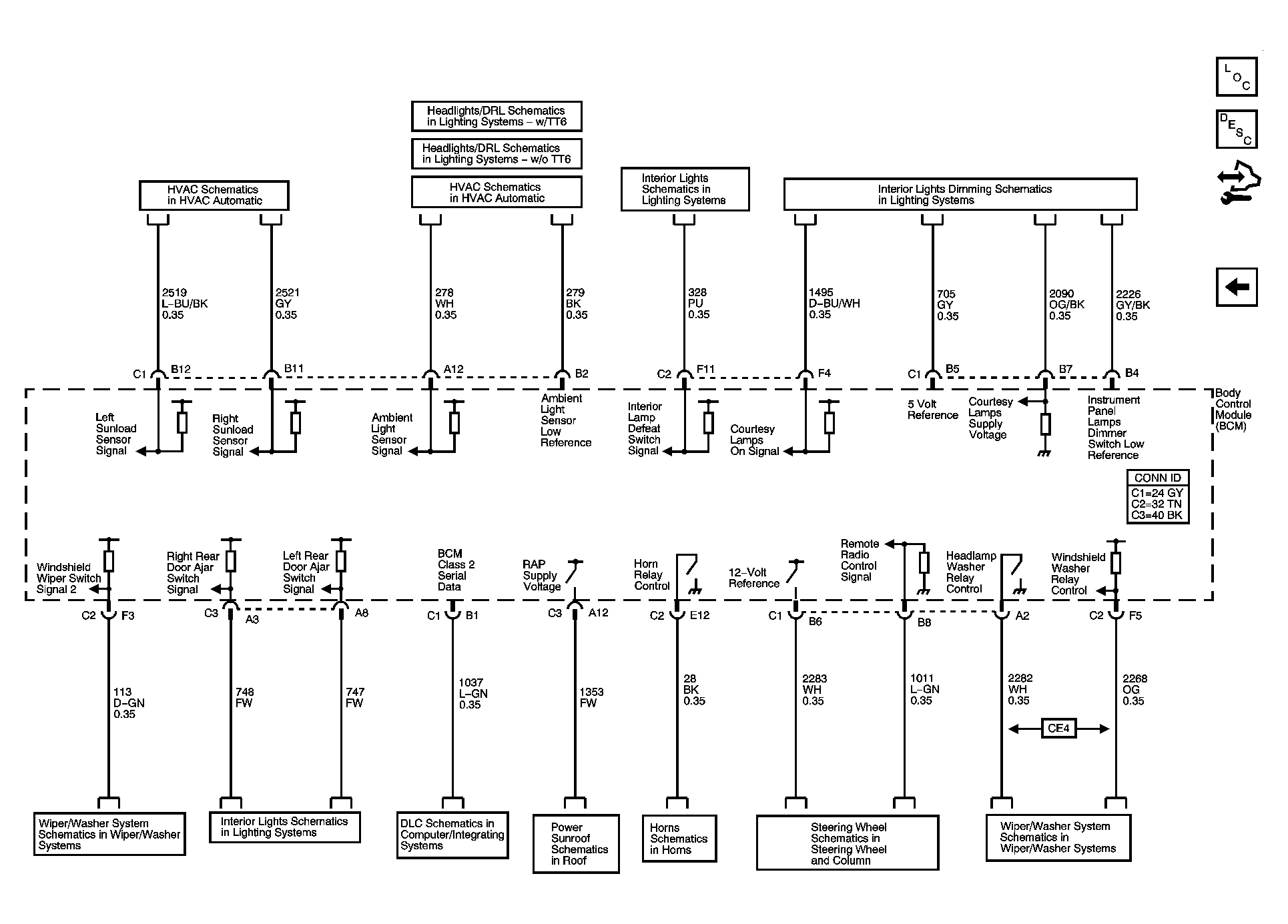

Fig 2: Controlled/Monitored Subsystem References - 1 of 3
GM1630468Courtesy of GENERAL MOTORS CORP.

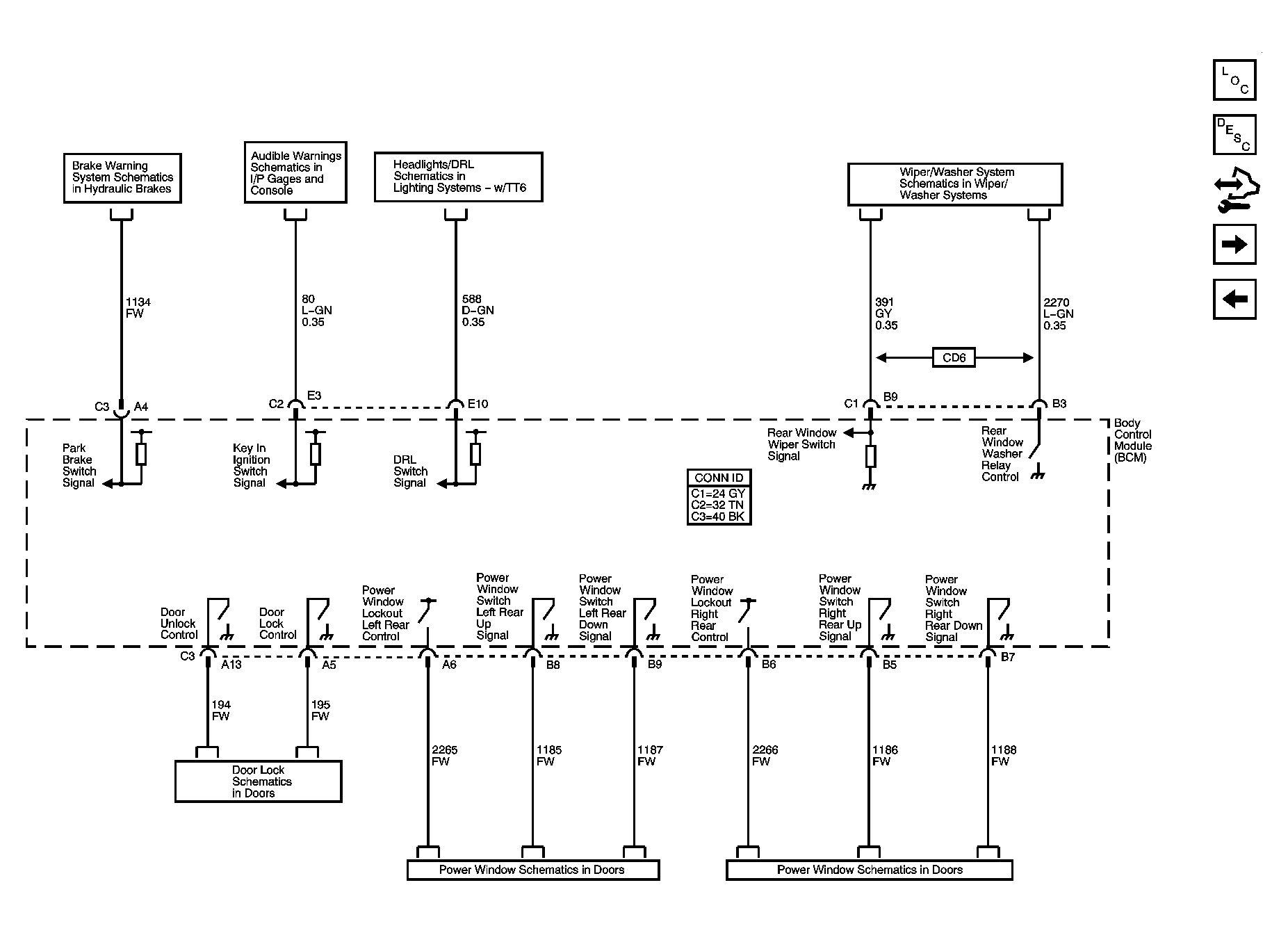

Fig 3: Controlled/Monitored Subsystem References - 2 of 3
GM1630470Courtesy of GENERAL MOTORS CORP.

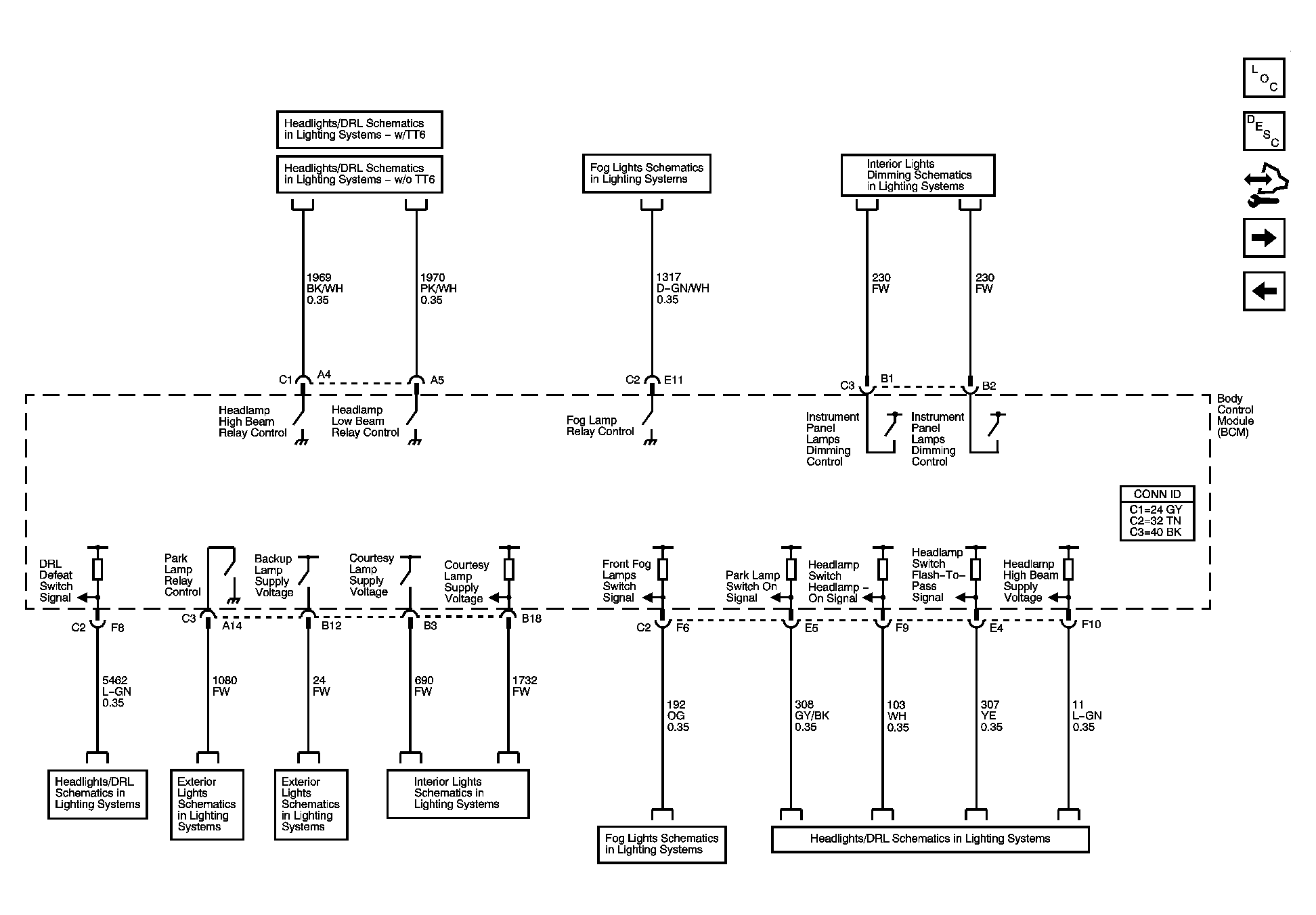

Fig 4: Controlled/Monitored Subsystem References - 3 of 3
GM1630471Courtesy of GENERAL MOTORS CORP.
