Fuel Pressure Regulator

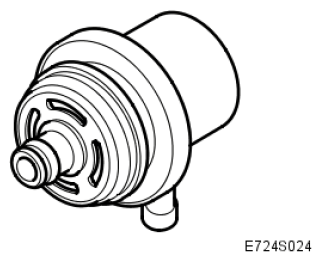

Fig 1: Identifying Fuel Pressure Regulator
G05035496Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE SPECIFICATIONS

Fuel pressure bar 3.0±0.1
Pressure, air side   Connected to intake manifold
