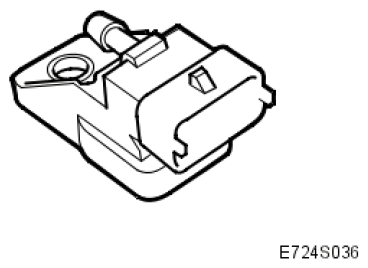

EVAP Pressure Sensor (585)
On certain models.
PRESSURE SPECIFICATIONS
| Location | On fuel tank by petrol pump | ||
|---|---|---|---|
| Power supply | V | 5 | |
| Differential pressure | |||
| -3.75 kPa (-0.0375 bar) | V | approx. 0.5 | |
| 0 kPa (0 bar) | V | approx. 3.5 | |
| 1.25 kPa (0.0125 bar) | V | approx. 4.5 | |

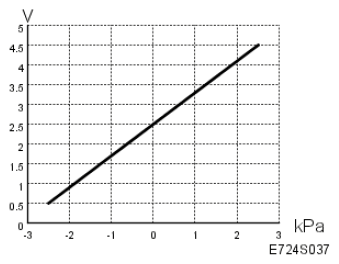

The pressure sensor determines the difference in pressure between the tank and the atmosphere, and supplies the control module with a proportional voltage.
