Fuel System, Trionic T7, US/CA: Notes

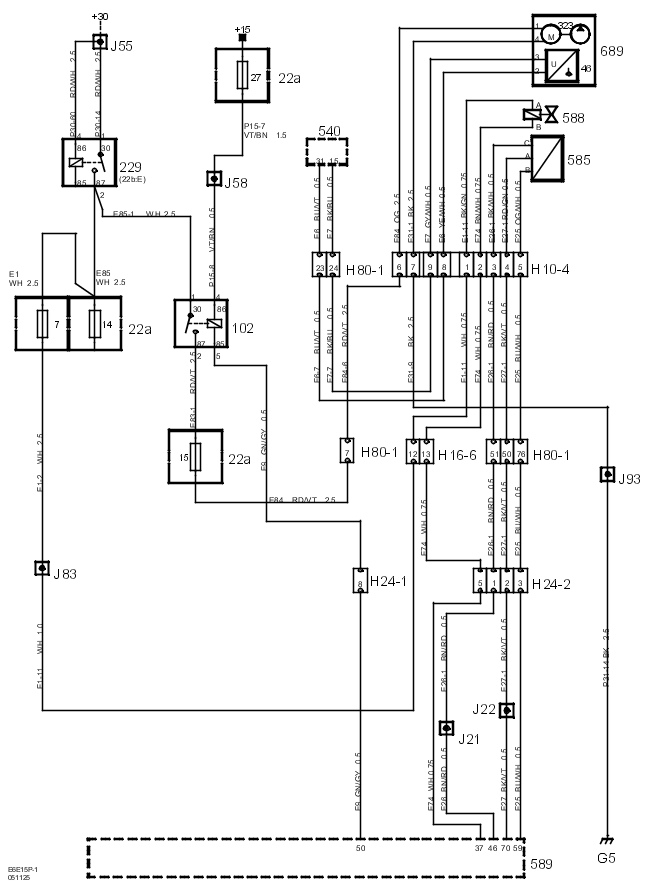

Fig 1: Schematic Diagram For Fuel System, Trionic T7, US/CA

G05036974

Courtesy of SAAB-SCANIA OF AMERICA, INC.
