Home >> Saab >> 2006 >> 9-5 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Repair Instructions >> Manifold Absolute Pressure Sensor >> To remove

To remove

  1. Remove the upper engine cover.

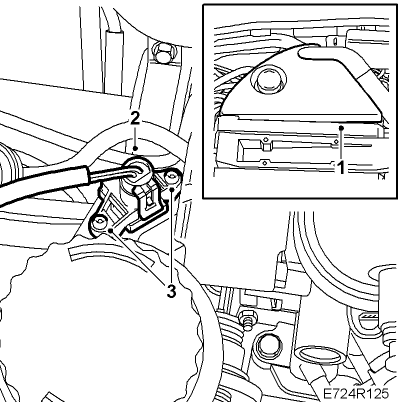

    Fig 1: Illustration For Step 2-3
    G05035074Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector.
  3. Remove the sensor.
