Level Sensor, Fuel (46)

4-cyl. petrol

Fig 1: Identifying Fuel Level Sensor
G05035384Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl. US

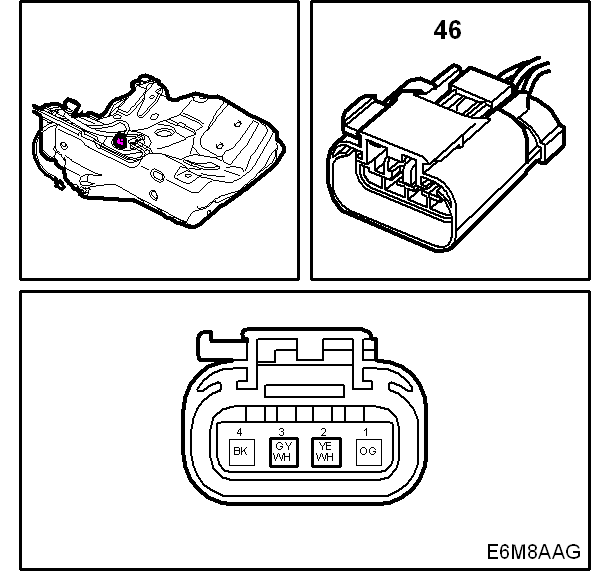

Fig 2: Identifying Fuel Level Sensor For 4-Cylinder US
G05034914Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

Fig 3: Identifying Fuel Level Sensor For 4-Cyl Diesel
G05034915Courtesy of SAAB-SCANIA OF AMERICA, INC.
