ESP Control Module (671)

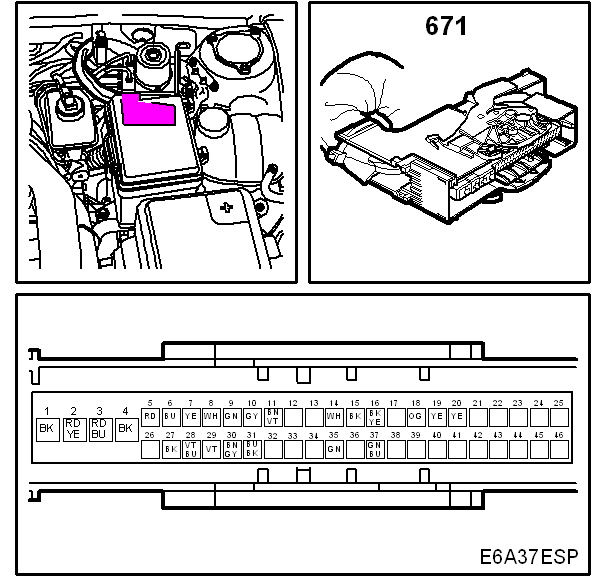

Fig 1: Identifying ESP Control Module

G05035432

Courtesy of SAAB-SCANIA OF AMERICA, INC.
