Connector H24-1

4-cyl petrol

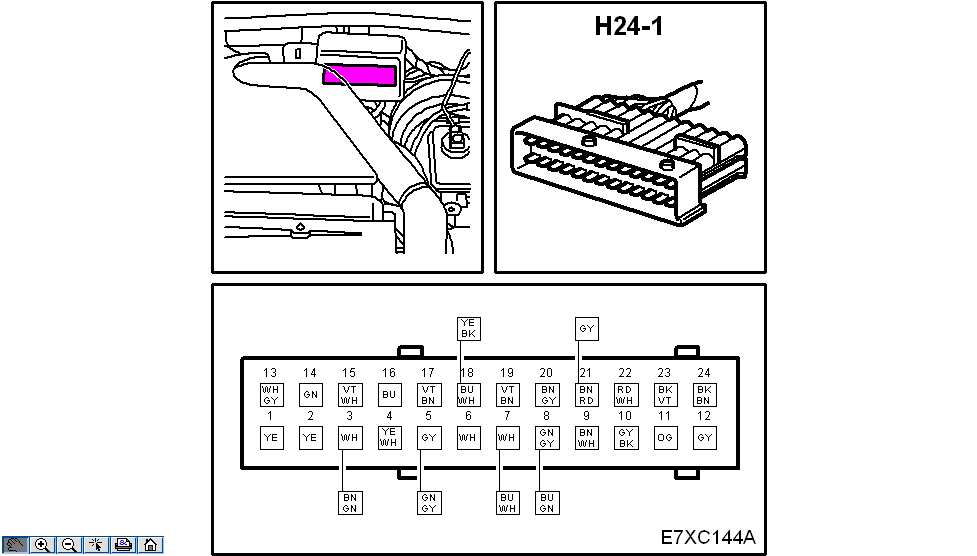

Fig 1: Identifying Connector H24-1 For 4-Cyl Petrol
G05034930Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

Fig 2: Identifying Connector H24-1 For 4-Cyl Diesel
G05034931Courtesy of SAAB-SCANIA OF AMERICA, INC.
