Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Location

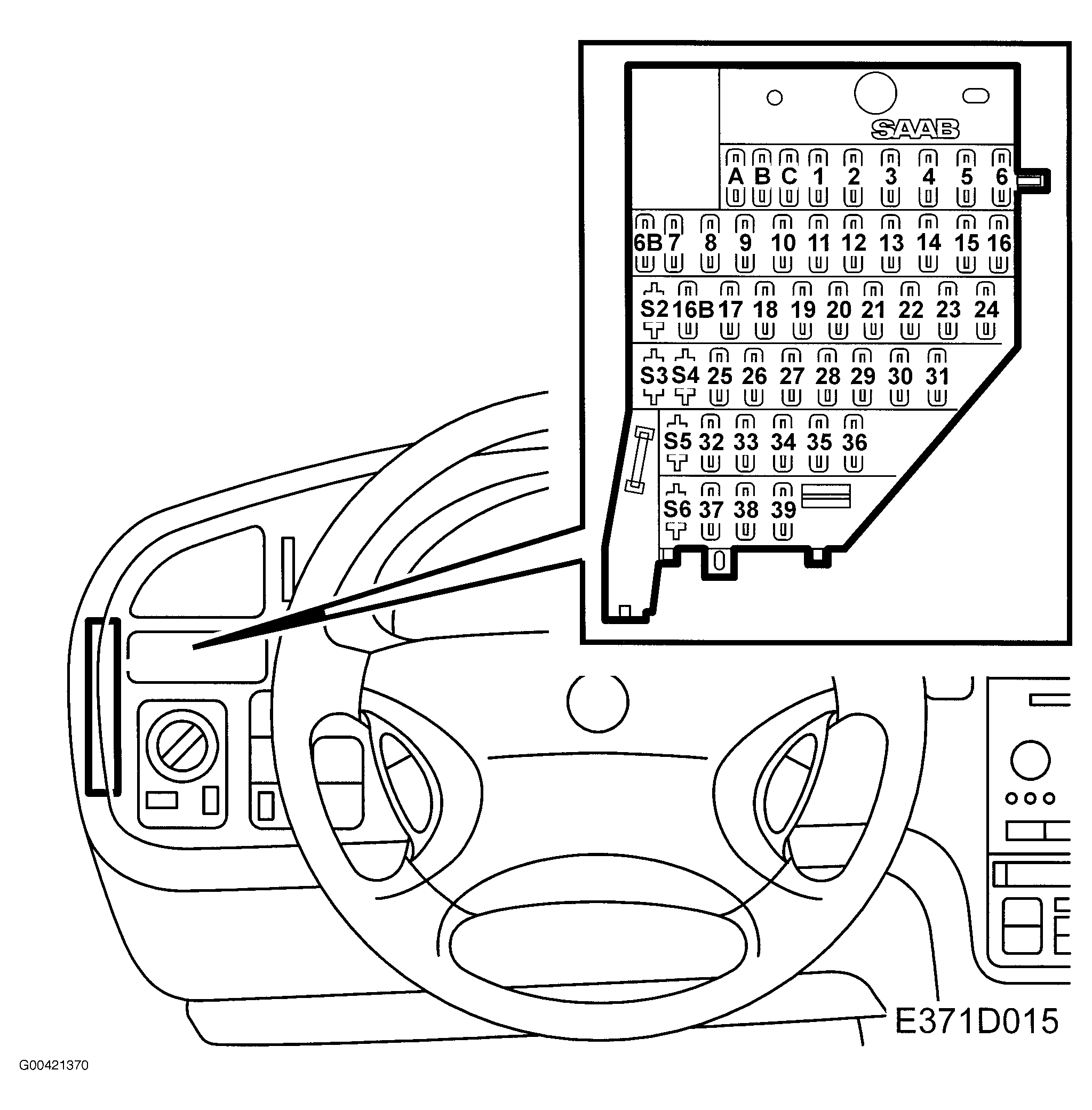

Dashboard Main Fuse Board Behind left end of dash. See Figure .

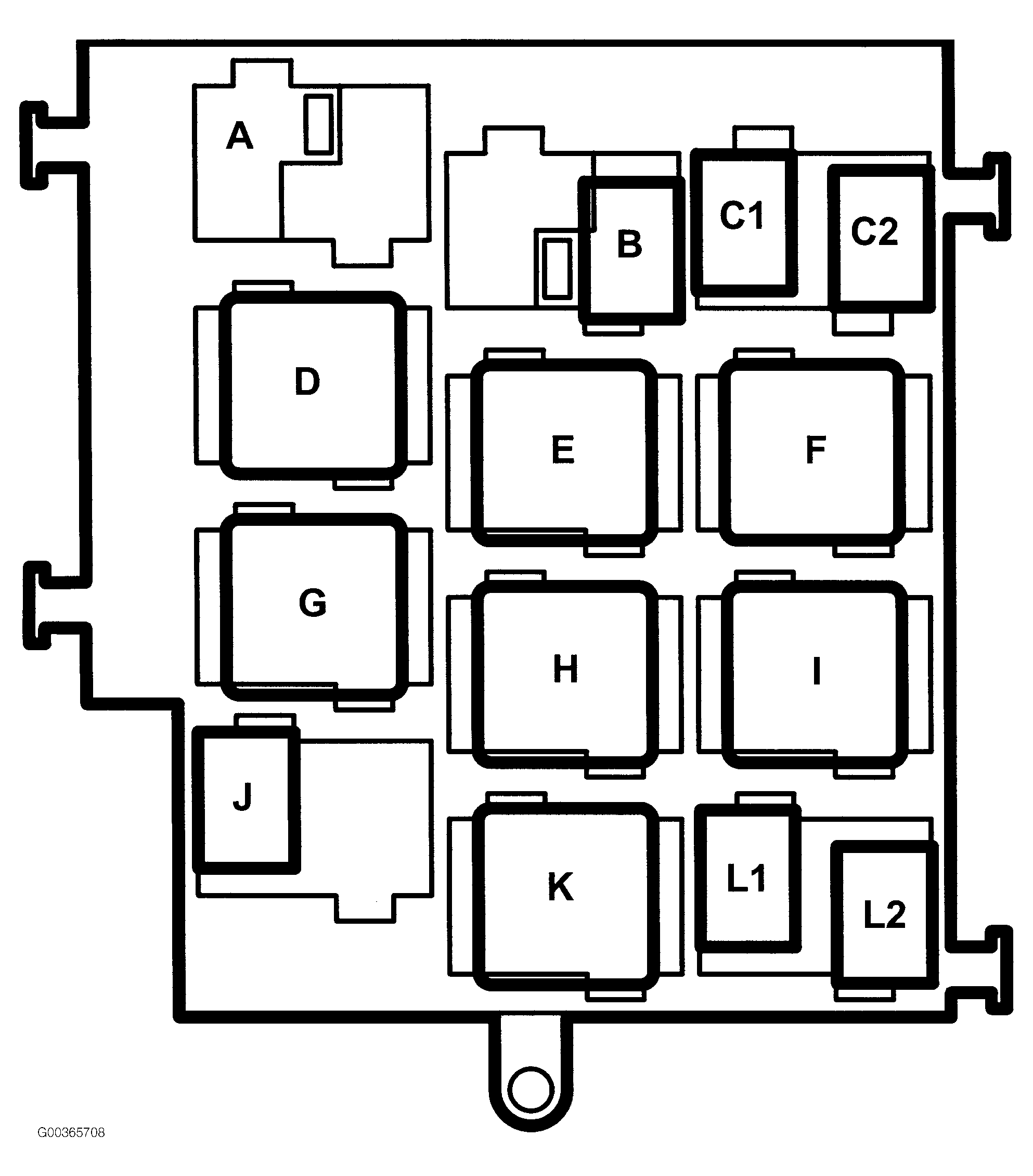

Dashboard Main Relay Box Under dashboard near steering wheel. See Figure .
Engine Bay Main Fuse Box Behind battery.
Engine Bay Main Relay Box Behind battery.

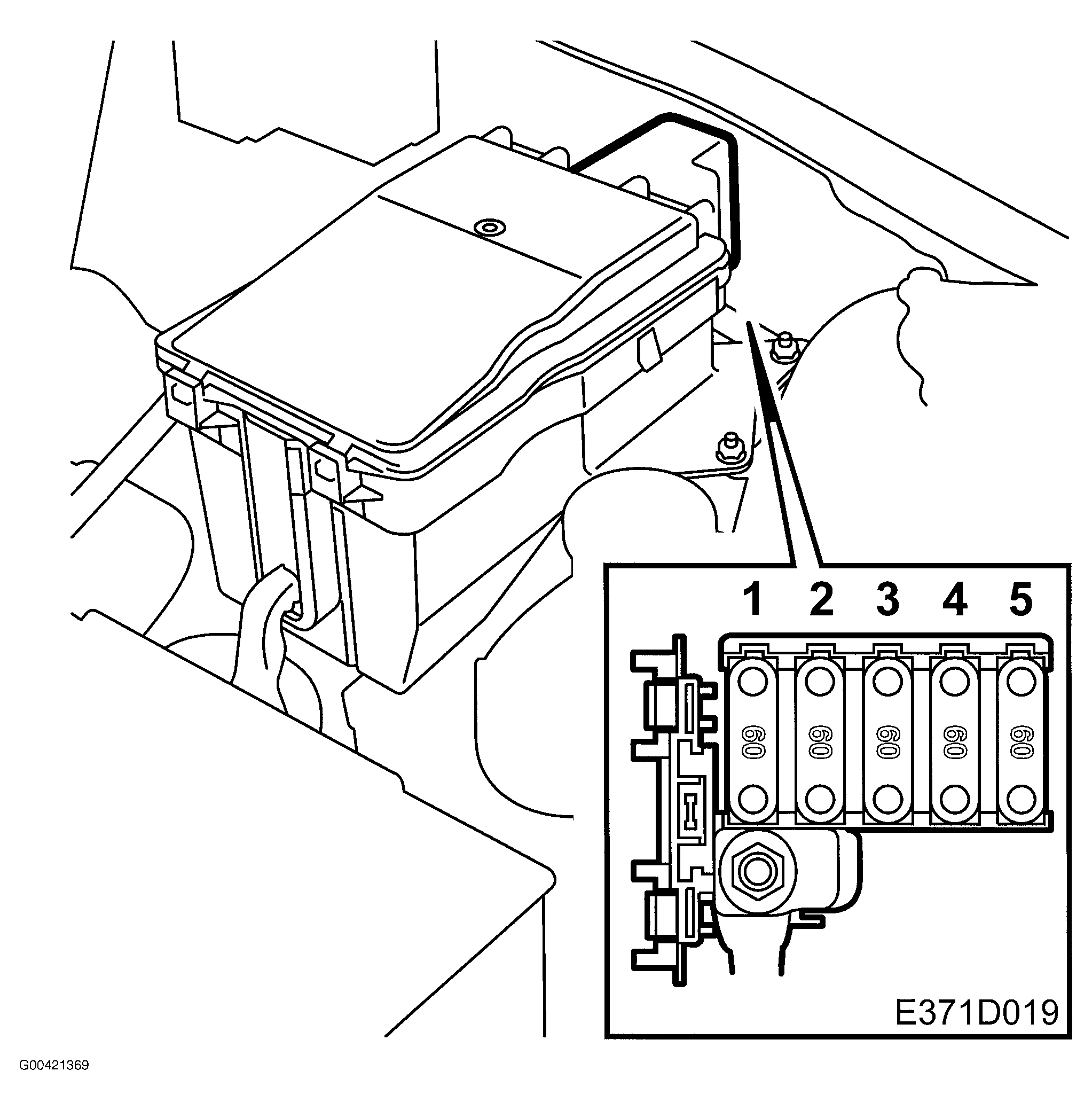

Engine Bay Maxi-Fuses Box Behind main fuse box in engine bay. See Figure .
