Control Module: Notes

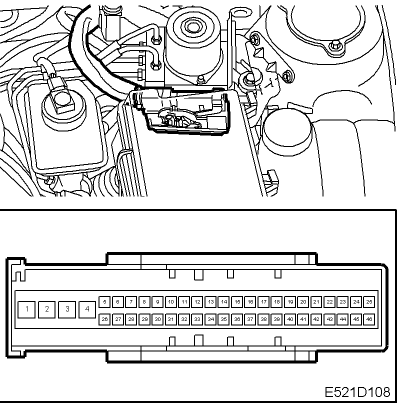

Fig 1: Identifying Control Module Connector
G05041185Courtesy of SAAB-SCANIA OF AMERICA, INC.

The control module is integrated in the ESP unit and has a 46 pin connector. The module also controls the ABS, EBD and TCS.
