PSM Control Module (357Dk)

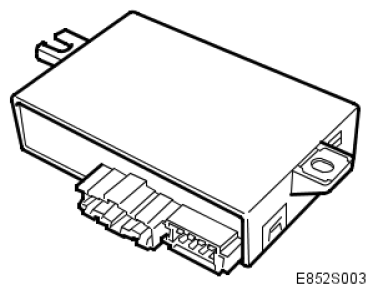

Fig 1: Identifying PSM Control Module (357DK)
G05043812Courtesy of SAAB-SCANIA OF AMERICA, INC.
PSM CONTROL MODULE (357DK) SPECIFICATION

Number of contacts qty 3
Power supply +30 pin 6 (connector 1)
Power supply +15 pin 1 (connector 1)
Ground pin 7 (connector 1)
