Home >> Saab >> 2006 >> 9-3 Aero, 2D Convertible, Standard >> Repair and Diagnosis >> Electrical >> Horns >> Lighting And Signaling Systems >> Interior Lighting >> Component Locator >> Grounding point G41 >> Connected components

Connected components

CONNECTED COMPONENTS REFERENCE

  Via crimp connection J76, instrument harness
19 Glove box lighting bulb
48 Cigarette lighter
148 Ashtray/cigarette lighter lighting bulb
216 Automatic Climate Control
220a Control unit, ventilation fan, MCC,
220b Control unit, ventilation fan, ACC,
353 Radio main unit
461 Connection, electronic road tolls
504 Control panel, manual climate control
726 Control module gear selector lever

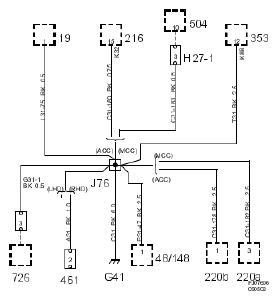

Fig 1: Grounding Point G41 - Circuit Diagram
G05054562Courtesy of SAAB-SCANIA OF AMERICA, INC.
