Grounding point G3, (CV): Notes

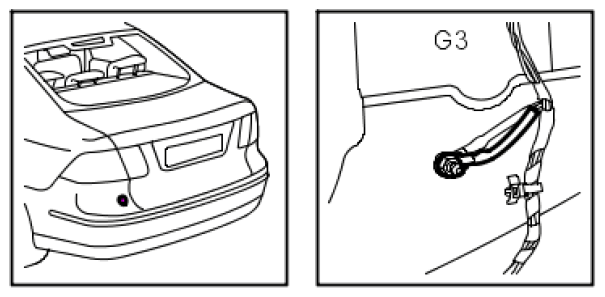

Fig 1: Identifying Grounding Point G3, (CV)
G05054547Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In luggage compartment below left light cluster
