Connector H10-6

Location: black connector on the parcel shelf by the left C-pillar

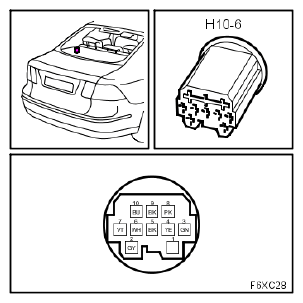

Fig 1: Identifying Connector H10-6

G05054515

Courtesy of SAAB-SCANIA OF AMERICA, INC.
