Connector H10-18
Connector H10-18
Location:
on side under right-hand D-pillar closest.

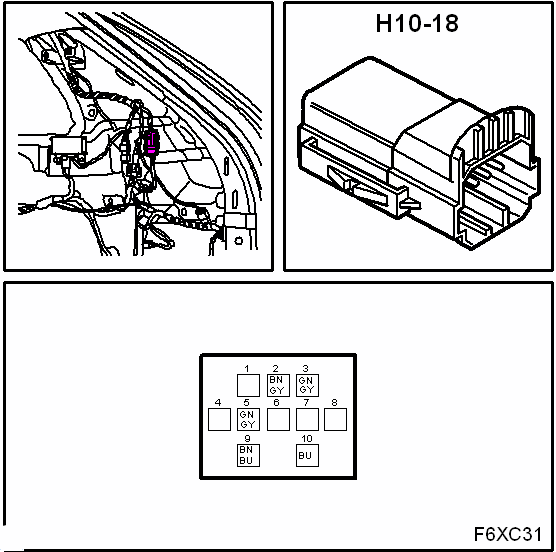

Fig 1: Identifying Connector H10-18
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
