Crimp connection J106, main harness: Notes

Location:

4D/5D:  Approx. 280 mm from the right-hand seat connector

CV:  Approx. 50 mm from branching point right-hand seat

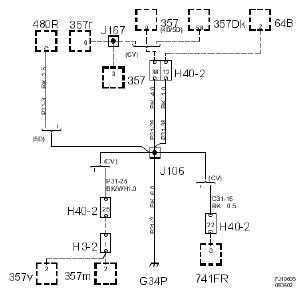

Fig 1: Identifying Crimp Connection J106, Main Harness - Circuit Diagram
G05067786Courtesy of SAAB-SCANIA OF AMERICA, INC.
