Main Components

  1. Front seat-belt with belt tensioner (236D, 236P)

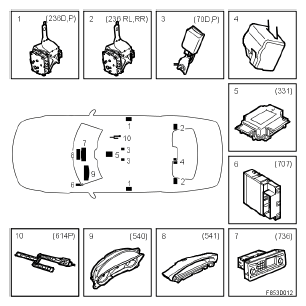

    Fig 1: Identifying Seat Belt System Main Components
    G05066504Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Rear seatbelt with belt pretensioner (outer seats, CV) (236RL, 236RR)
  3. Front seat-belt buckle sensor (70D, 70P)
  4. Rear seat-belt buckle
  5. Airbag control module (331)
  6. Control module, BCM (707)
  7. ICM (736)
  8. SID (541)
  9. Main instrument display panel, MIU (540)
  10. Sensor, loaded seat cushion, front passenger seat (614P)
