Grounding point G33P: Notes

WARNING: This page is about a different variant/trim than selected.

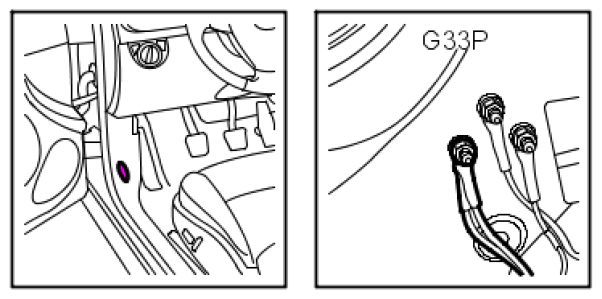

Fig 1: Identifying Grounding Point G33P
G05054177Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  By the floor below the left A-pillar (black tape)
