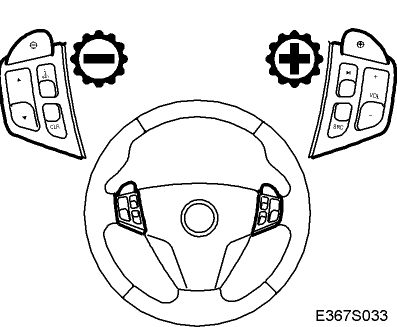

Steering Wheel Control (Switches), SENTRONIC
WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS COMPATIBILITY CHART
| Switch | Voltage (V) | Resistance (Ohms) |
|---|---|---|
| Horn | 0 | 0 |
| Shift up (+) | 0,6 | 21 |
| Shift down (-) | 0,9 | 47 |
| VOL - | 1.3 | 78 |
| VOL + | 1.7 | 117 |
| SRC (select audio source) | 2.1 | 167 |
| Arrow up (search forwards) | 2.5 | 234 |
| Arrow down (search backwards) | 2.9 | 327 |
| NXT (settings for audio sources) | 3.3 | 467 |
| i-SET | 3,7 | 699 |
| CLR | 4,1 | 1163 |
| Normal | 4,5 | 2563 |
