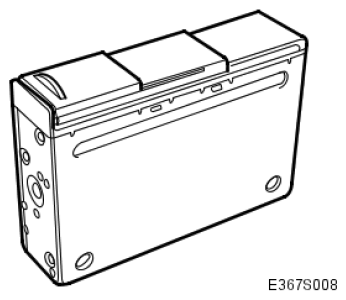

Cd Changer
WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS COMPATIBILITY CHART
| Manufacturer: | Pioneer. | |
| Type: | Magazine (6 x CD). | |
| Location: | 4D | Luggage compartment. |
| 5D | Luggage compartment | |
| Number of pins: | 12 | |
| Power supply +30: | Pin No. | 6 |
| Ground: | Pin No. | 12 |
| Instrument bus, I-BUS (+): | Pin No. | 11 |
| Instrument bus, I-BUS (-): | Pin No. | 5 |
| Frequency response: | 20 - 20,000 Hz 0.5 dB, nom. | |
| Closed-circuit current consumption: | mA | < 0.4 |
| Max. current consumption: | A | < 1.5 |
WARNING:
The CD changer is a Class 1 laser product
- The CD changer should be serviced and repaired by a qualified technician only.
- If the casing of the CD changer is damaged, laser radiation can occur with a risk of injury.
