To remove

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Airbag, driver.
  2. Unplug the steering wheel switch connector.

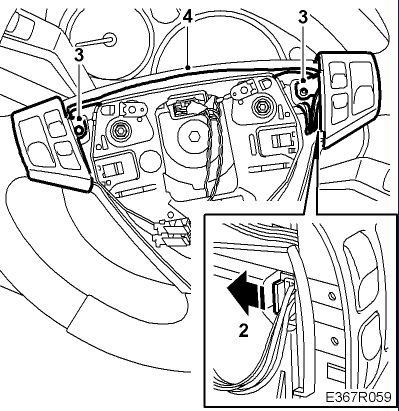

    Fig 1: Steering Wheel Switch Connector
    G05037960Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the screws. Remove the controls using removal tool (82 93 474).
  4. Remove the cable from the cable mounting.
