Head Unit, Audio/Navigation (635)

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

K16A

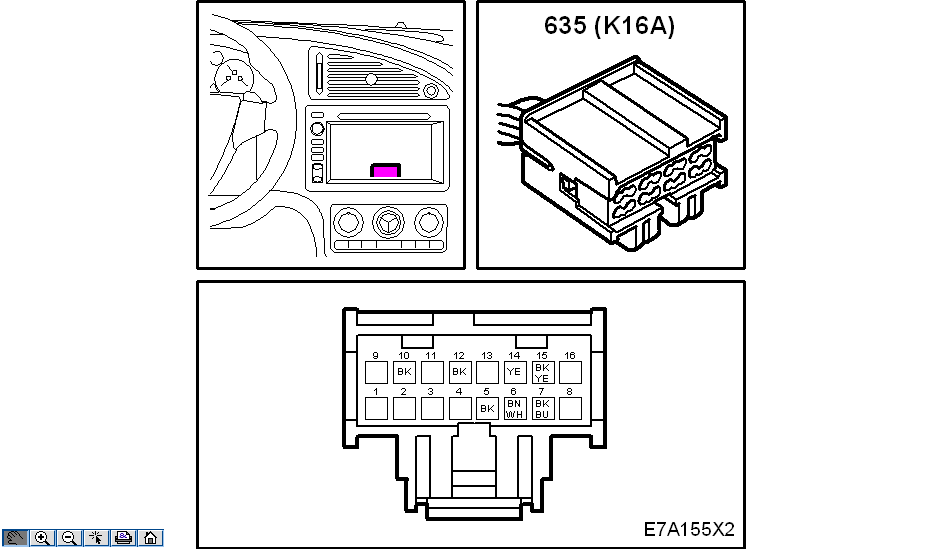

Fig 1: Identifying Head Unit, Audio/Navigation - K16A (635)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

Fig 2: Identifying Head Unit, Audio/Navigation - K16B (635)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16C

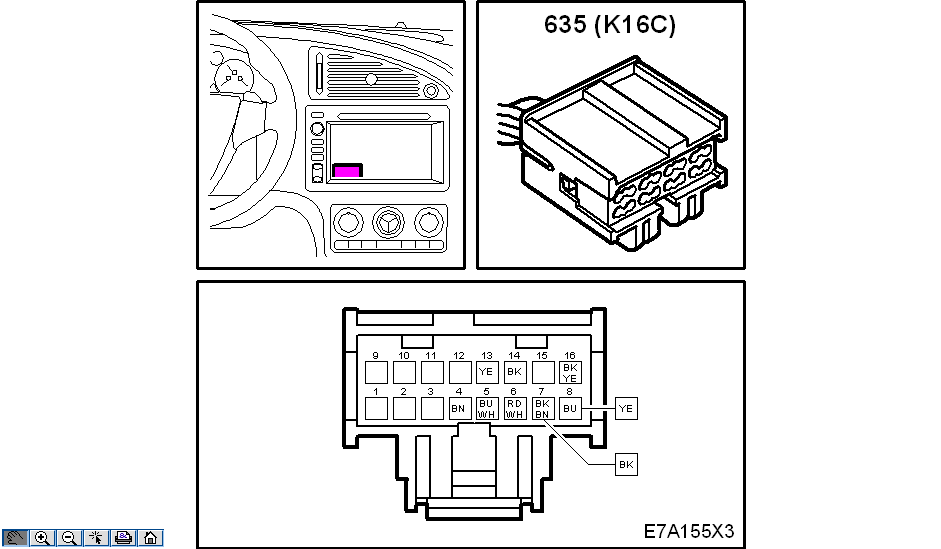

Fig 3: Identifying Head Unit, Audio/Navigation - K16C (635)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
