OnStar control module (673)

WARNING: This page is about a different car, the 2007 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:

4D: under the parcel shelf

K12

Fig 1: Identifying Onstar Control Module (673) - K12

G05173041

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16A

Fig 2: Identifying Onstar Control Module (673) - K16A

G05173739

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

Fig 3: Identifying Onstar Control Module (673) - K16B

G05173043

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D: under luggage compartment floor in front of subwoofer

K12

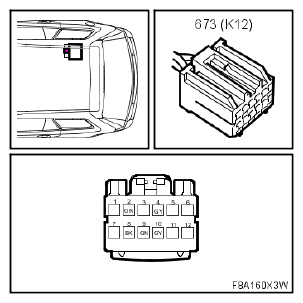

Fig 4: Identifying Onstar Control Module (673) - K12

G05173741

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16A

Fig 5: Identifying Onstar Control Module (673) - K16A

G05173742

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

Fig 6: Identifying Onstar Control Module (673) - K16B

G05173743

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV: in torsion box

K12

Fig 7: Identifying Onstar Control Module (673) - K12

G05173517

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16A

Fig 8: Identifying Onstar Control Module (673) - K16A

G05173745

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

Fig 9: Identifying Onstar Control Module (673) - K16B

G05173049

Courtesy of SAAB-SCANIA OF AMERICA, INC.
