ESP control module (671)

WARNING: This page is about a different car, the 2007 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Integrated in hydraulic unit behind electrical center 342 in engine bay

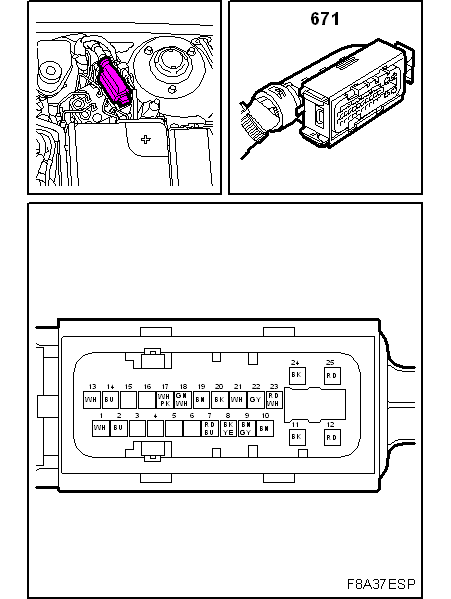

Fig 1: Identifying ESP Control Module (671)
G05173040Courtesy of SAAB-SCANIA OF AMERICA, INC.
