Grounding point G7R: Notes

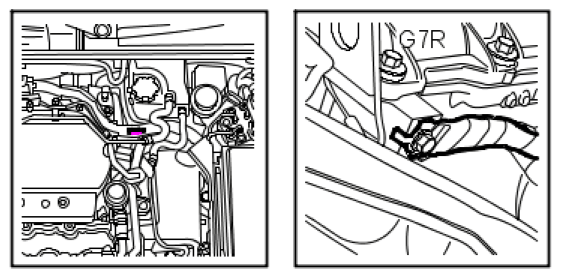

Fig 1: Identifying Grounding Point G7R

G05058397

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: On the rear cylinder bank toward the gearbox side
