Brief description: Overview

4D

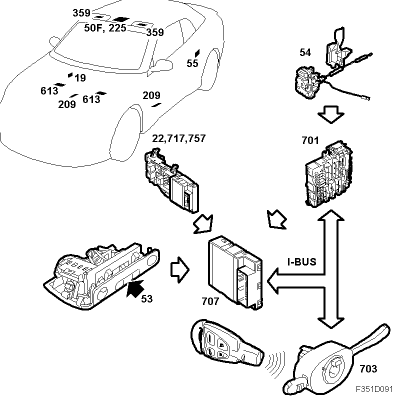

Fig 1: Main Components (4D) - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

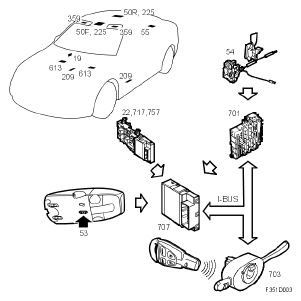

Fig 2: Main Components (CV) - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Interior lighting switch (53)
• Door switch, luggage compartment (54)
• Ignition Switch Module (ISM) (20)
• Driver's/passenger door control module (DDM/PDM) (702 D/P)
• Rear left/right door control module (RLDM/RRDM) (702 RL/RR)
• Body Control Module (BCM) (707)
• Column Integration Module (CIM) (703a)
• Rear Electrical Centre (REC) (701)
• Lamp, front floor lighting (613F)
• Lamp, vanity mirror lighting (359)
• Lamp, glove box lighting (19)
• Lamp, courtesy lighting (209)
• Lamp, front roof lighting (50F)
• Lamp, rear roof lighting (50R)
• Lamp, luggage compartment lighting (55)
