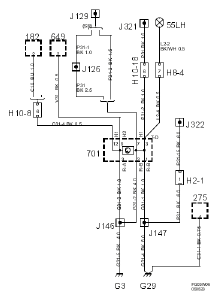

Connected components
CONNECTED COMPONENTS REFERENCE
| Via Crimp connection J146, rear harness | |
| 182 | Unit, sunroof |
| 630 | Control module, SPA |
| 649 | Rain sensor |
| 701 | Electrical distribution unit, boot |
| Via Crimp connector J126, roof harness (cars with sunroof) | |
| 181B | Switch, electric sun roof without pinch protection |
| 182 | Unit, sunroof |
| Via Crimp J129, roof harness
connected to car: with sun roof: via crimp J126 without sun roof: via rear electrical centre 701 directly to G3 |
|
| 359LH | Lamp, make-up mirror lighting, left |
| 359RH | Lamp, make-up mirror lighting, right |
| 681 | Rear-view mirror, interior |
| 685F | Unit, dome light, front |
| 685R | Unit, dome light, rear |
| Via Crimp J145, boot lid harness | |
| 418HL | Unit, light cluster, boot lid, left |
| 418HR | Unit, light cluster, boot lid, right |
| 687H | Unit, central locking, boot lid |
| 691 | Unit, handle, boot lid |
