Front dome light unit (685F)

Location:  in the roof by the windscreen

4D/5D

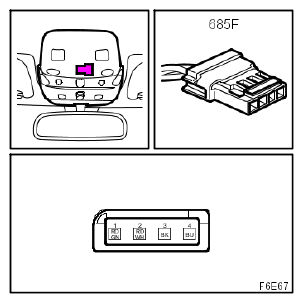

Fig 1: Identifying Front Dome Light Unit (685F) - 4D/5D
G05054469Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

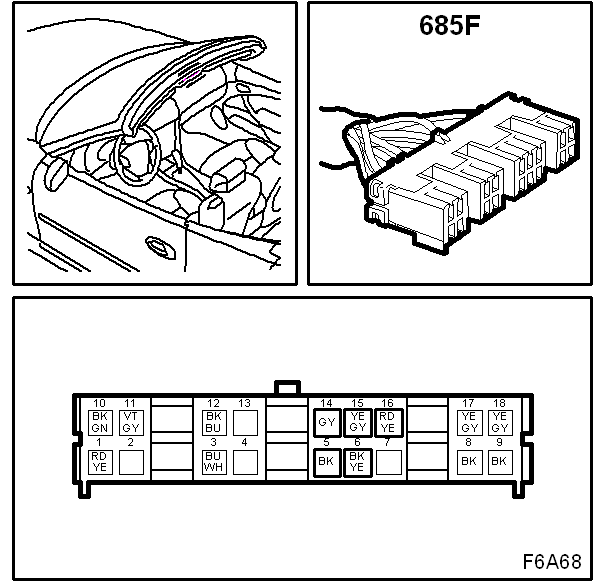

Fig 2: Identifying Front Dome Light Unit (685F) - CV
G05054470Courtesy of SAAB-SCANIA OF AMERICA, INC.
