Crimp J208, main wiring harness CV: Notes

Location:  Approx. 250 mm from the branching point to the roof lighting unit towards the LH front door

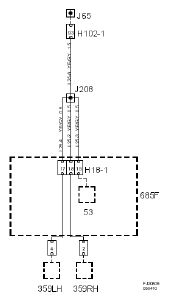

Fig 1: Crimp J208, Main Wiring Harness CV - Circuit Diagram
G05054538Courtesy of SAAB-SCANIA OF AMERICA, INC.
