Connector, boot lid (54H)

Location:  in the central locking system motor

4D/CV

Fig 1: Identifying Connector, Boot Lid (54H) - 4D/CV
G05054452Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

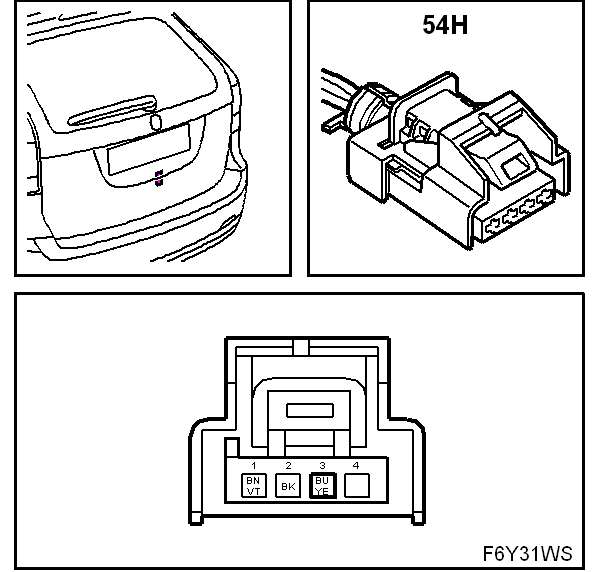

Fig 2: Identifying Connector, Boot Lid (54H) - 5D
G05054453Courtesy of SAAB-SCANIA OF AMERICA, INC.
