Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Rear Electrical Center

G00365720

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Instrument Panel Electrical Center (IPEC)

G00365721

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 3: Main Fuse Box (Engine Bay)

G00365722

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 4: Vehicle Overview

G00365723

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 5: Vehicle Overview (Convertible)

G00365724

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 6: Vehicle Overview (Sedan)

G00365725

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 7: Vehicle Overview

G00365727

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 8: Vehicle Overview (Sedan)

G00365728

Courtesy of SAAB-SCANIA OF AMERICA, INC.

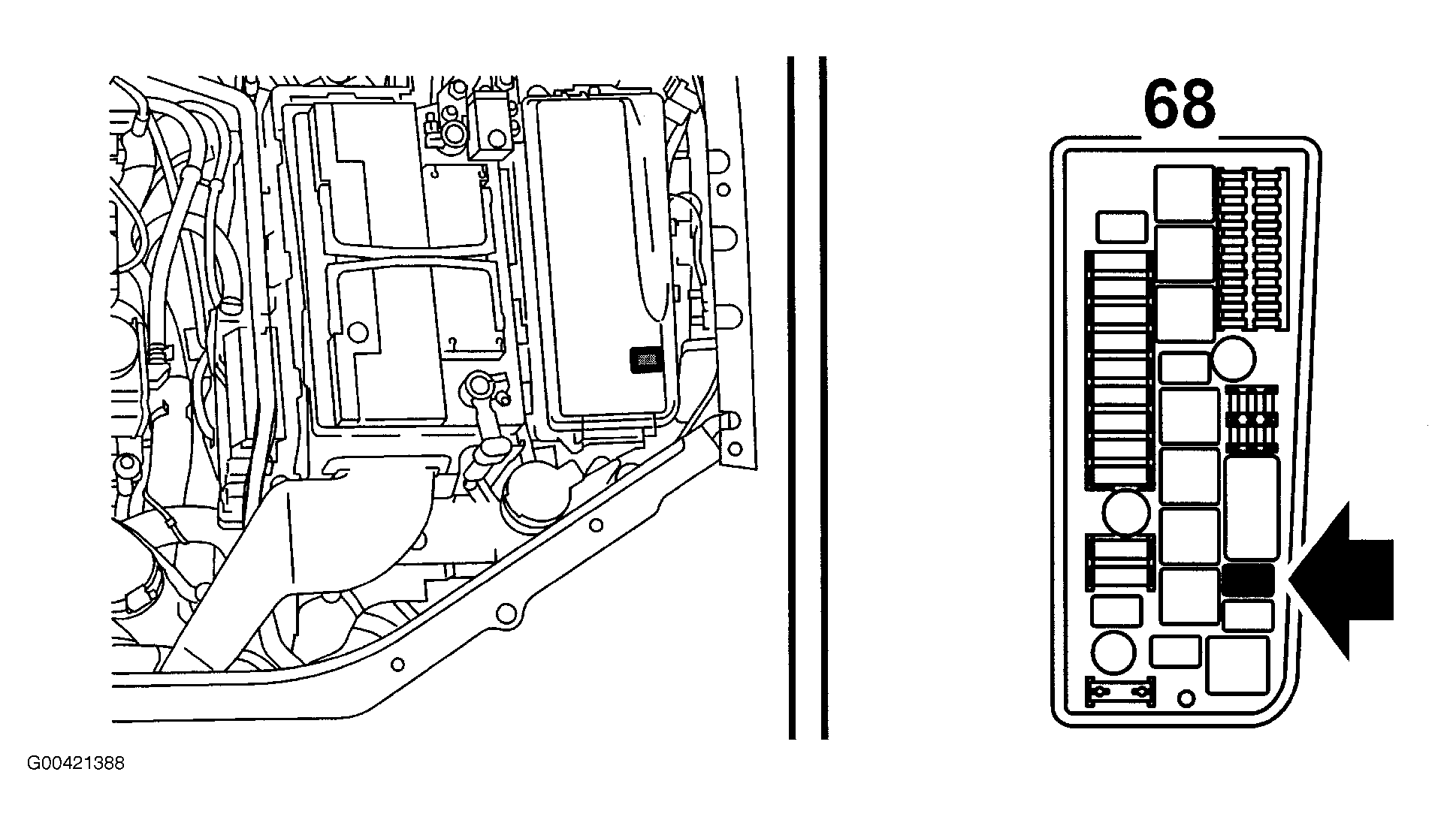

Fig 9: Under-Hood Electrical Center

G00421388

Courtesy of SAAB-SCANIA OF AMERICA, INC.

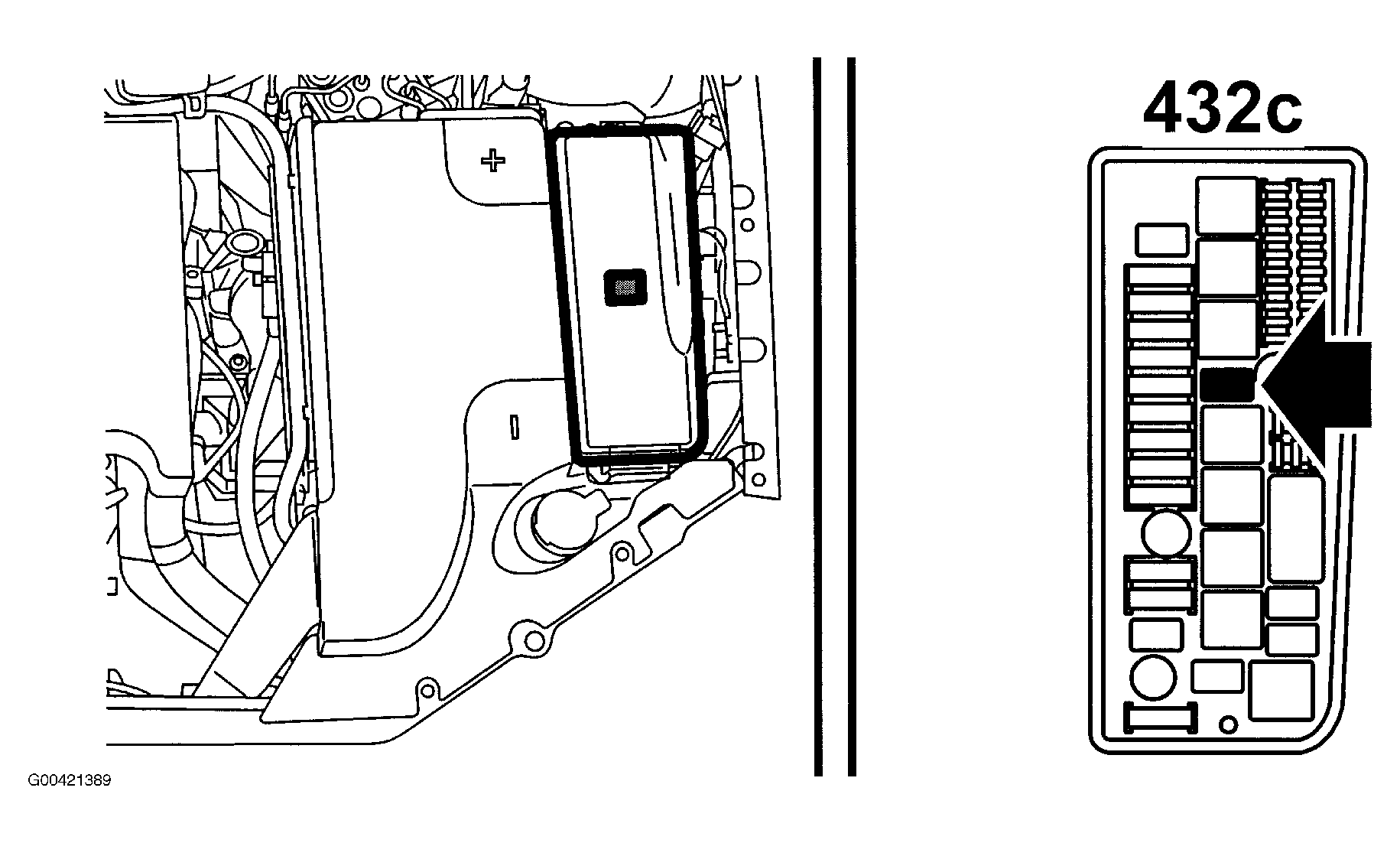

Fig 10: Under-Hood Electrical Center

G00421389

Courtesy of SAAB-SCANIA OF AMERICA, INC.

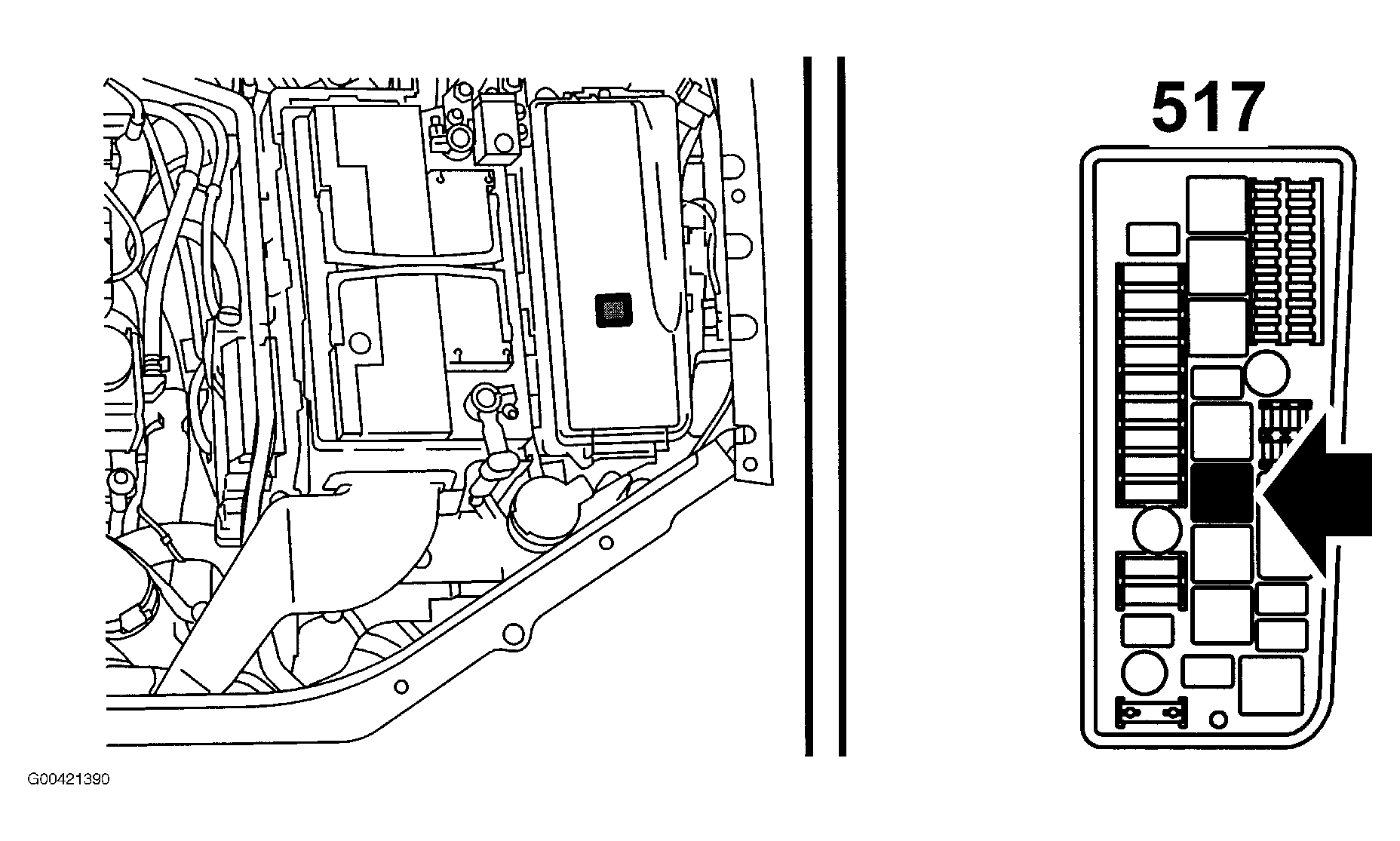

Fig 11: Under-Hood Electrical Center

G00421390

Courtesy of SAAB-SCANIA OF AMERICA, INC.

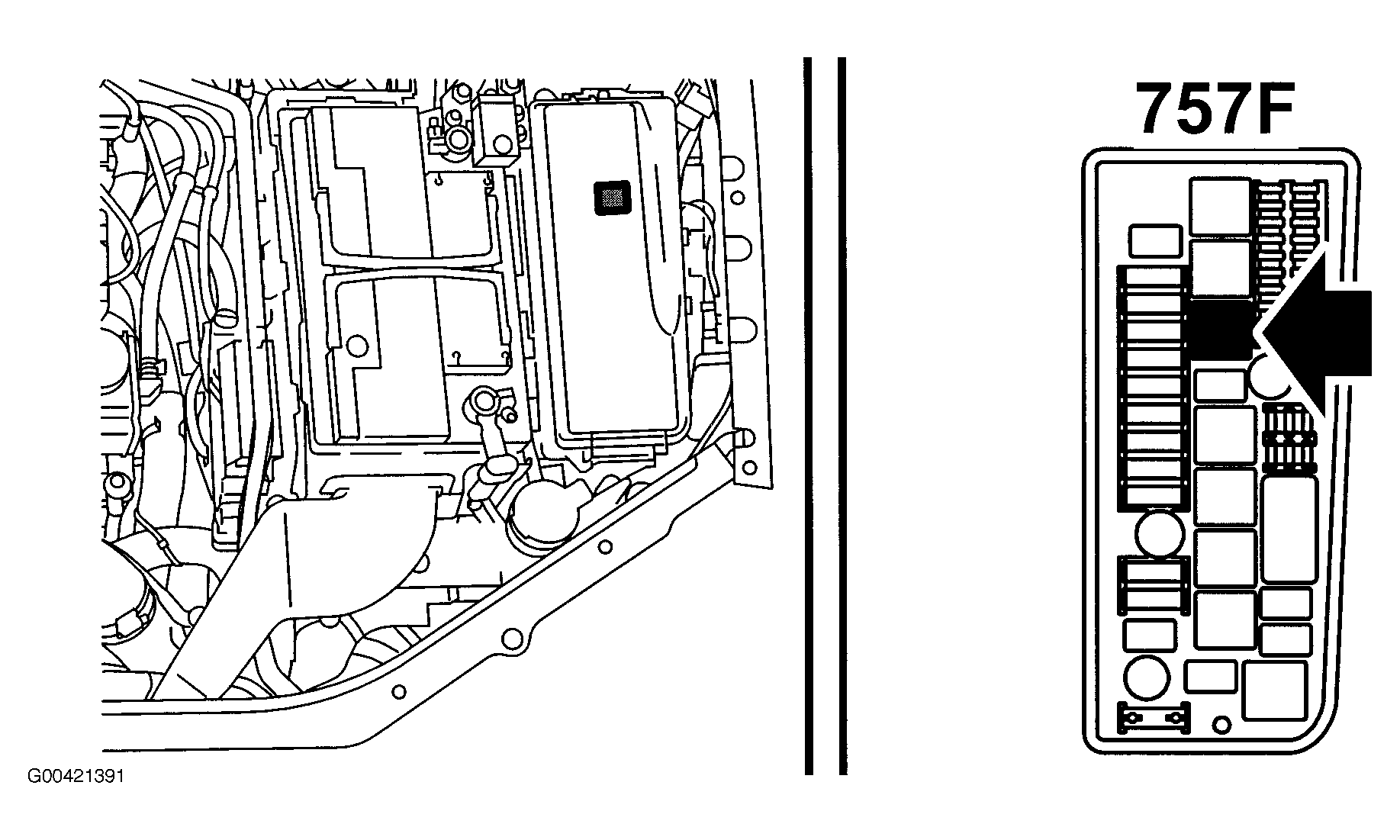

Fig 12: Under-Hood Electrical Center

G00421391

Courtesy of SAAB-SCANIA OF AMERICA, INC.

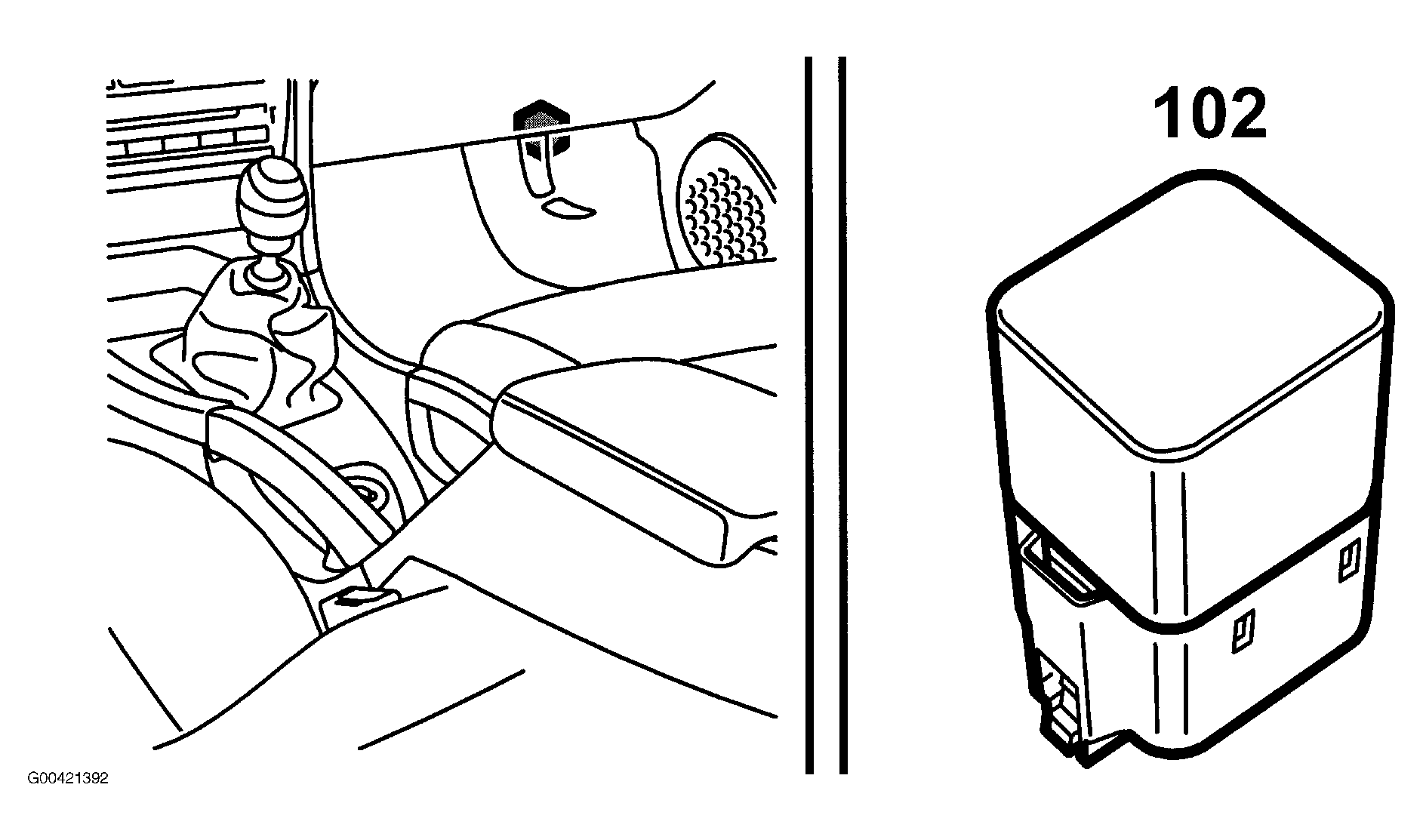

Fig 13: Right Kick Panel

G00421392

Courtesy of SAAB-SCANIA OF AMERICA, INC.

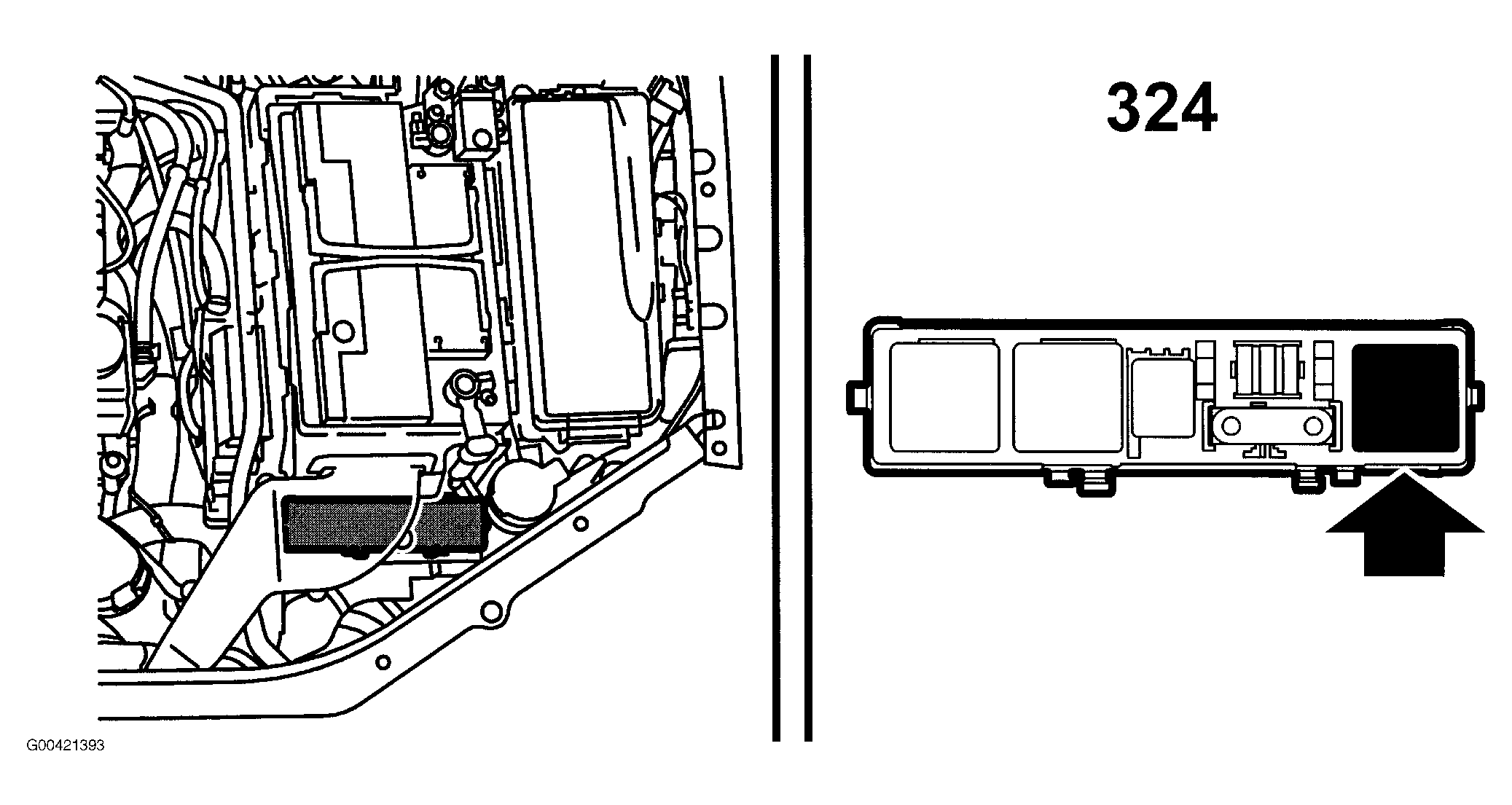

Fig 14: Left Front Of Engine Compartment

G00421393

Courtesy of SAAB-SCANIA OF AMERICA, INC.

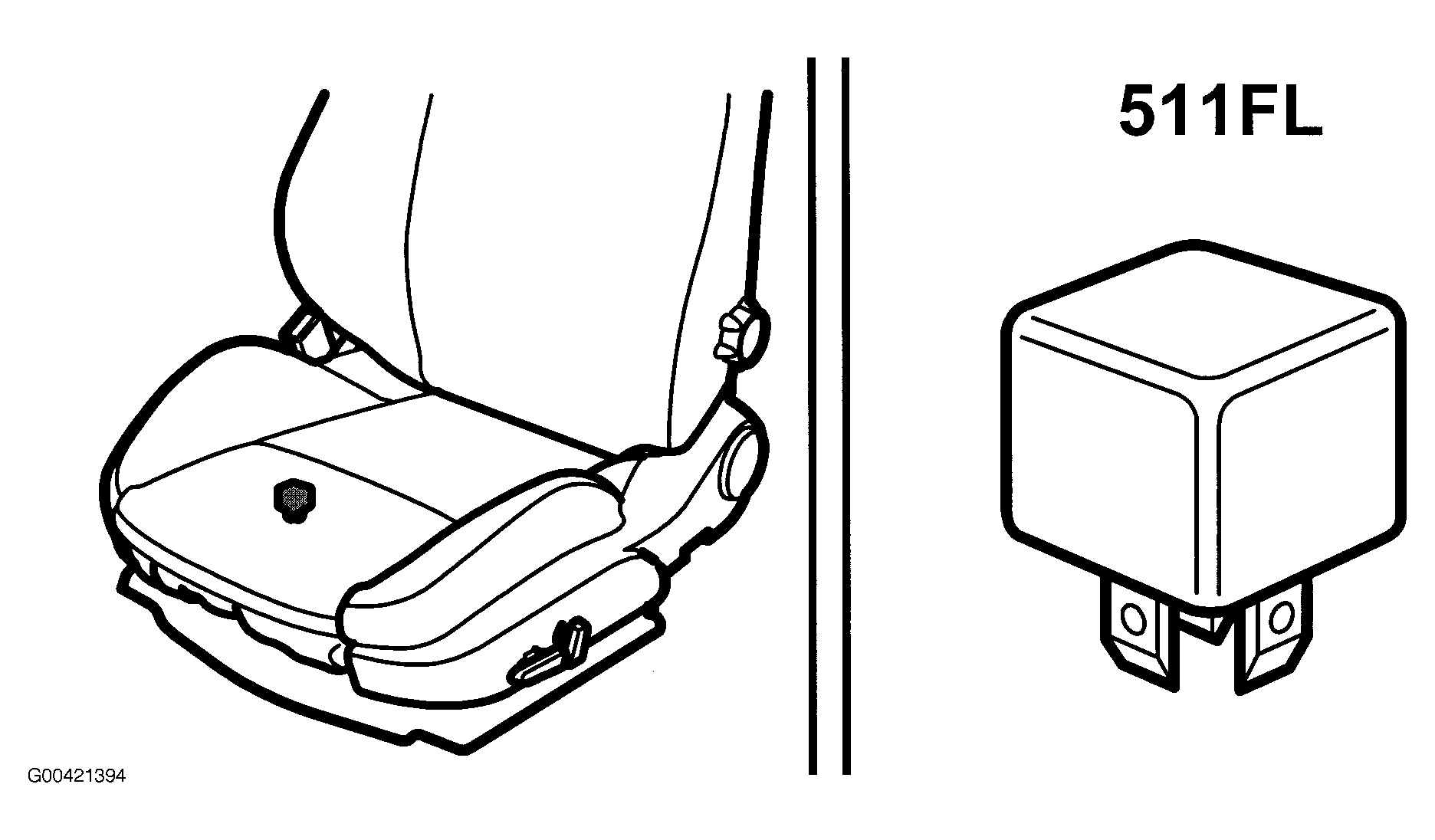

Fig 15: Left Front Seat (Right Similar)

G00421394

Courtesy of SAAB-SCANIA OF AMERICA, INC.

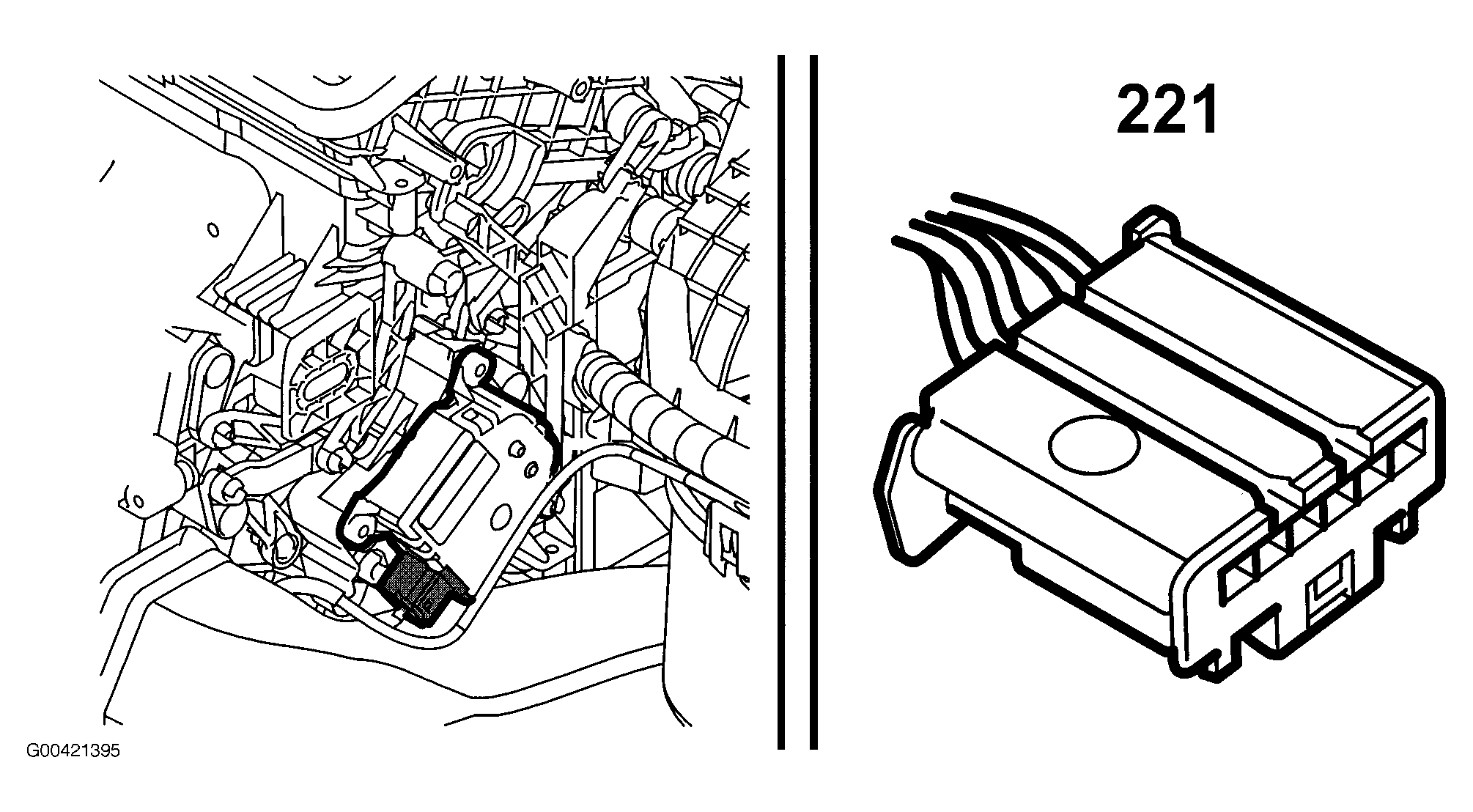

Fig 16: Under Right Side Of Dash

G00421395

Courtesy of SAAB-SCANIA OF AMERICA, INC.

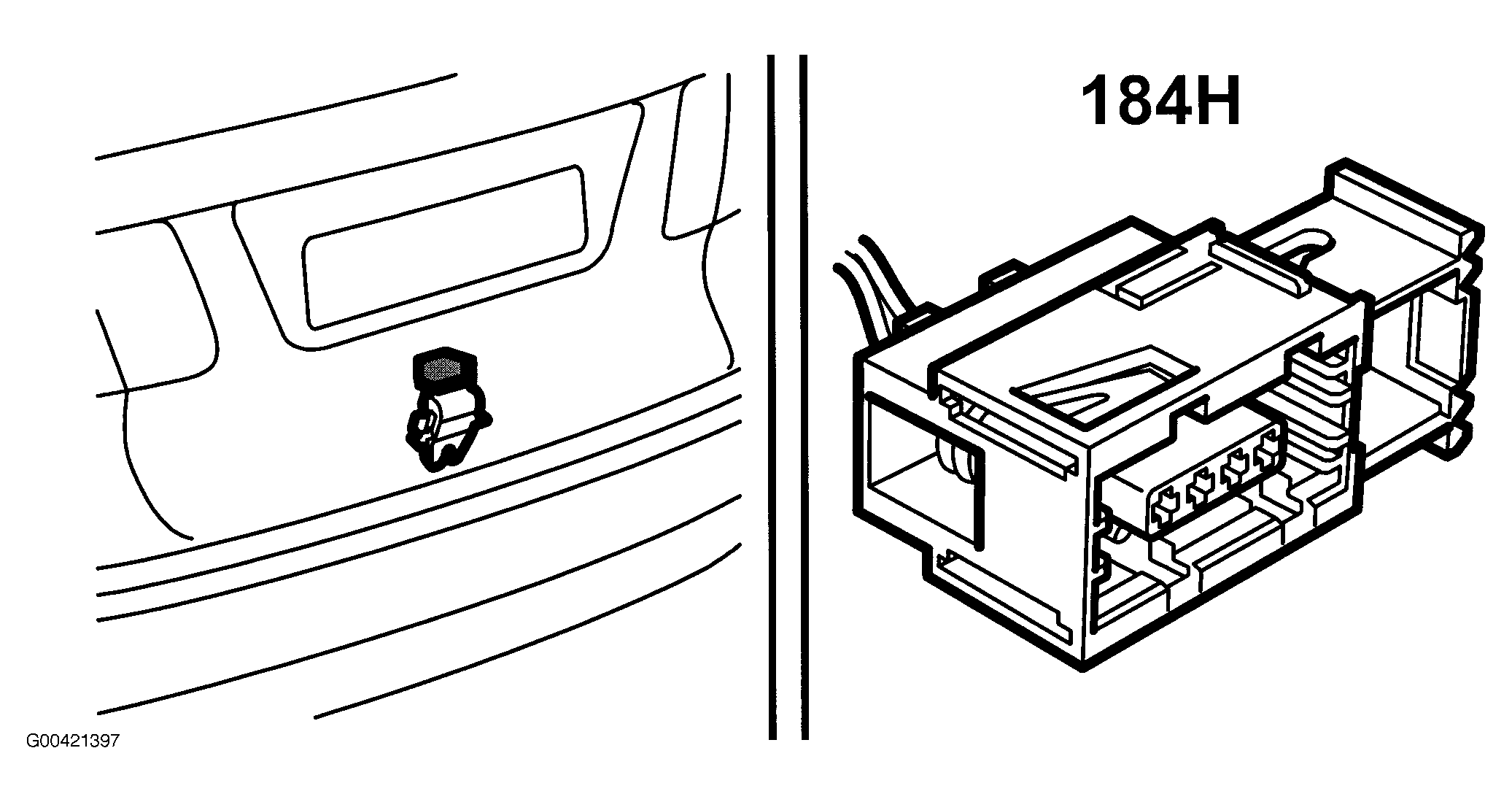

Fig 17: Center Rear Of Luggage Compartment

G00421397

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 18: Under Right Side Of Dash

G00421398

Courtesy of SAAB-SCANIA OF AMERICA, INC.

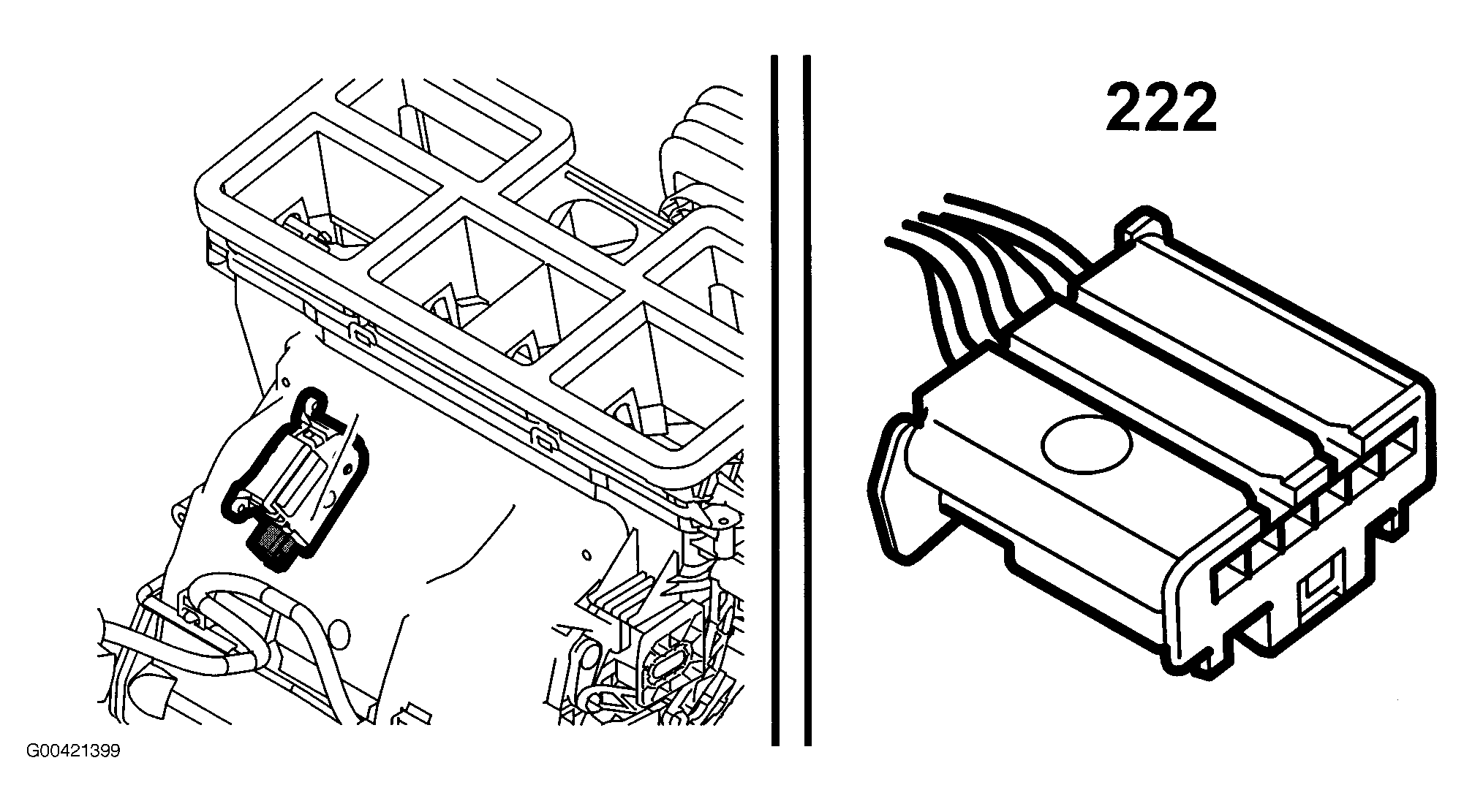

Fig 19: Under Right Side Of Dash

G00421399

Courtesy of SAAB-SCANIA OF AMERICA, INC.

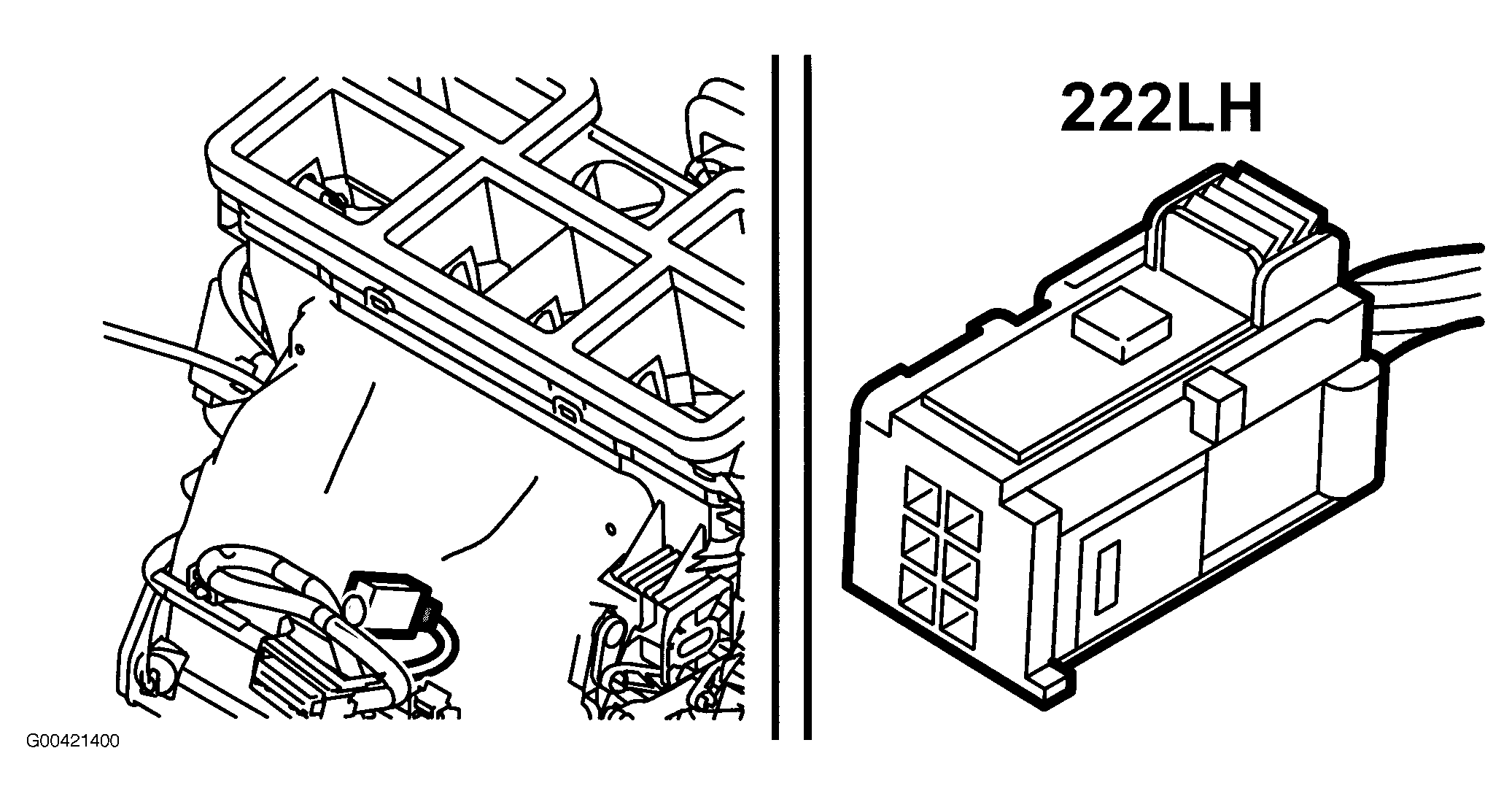

Fig 20: Under Right Side Of Dash

G00421400

Courtesy of SAAB-SCANIA OF AMERICA, INC.

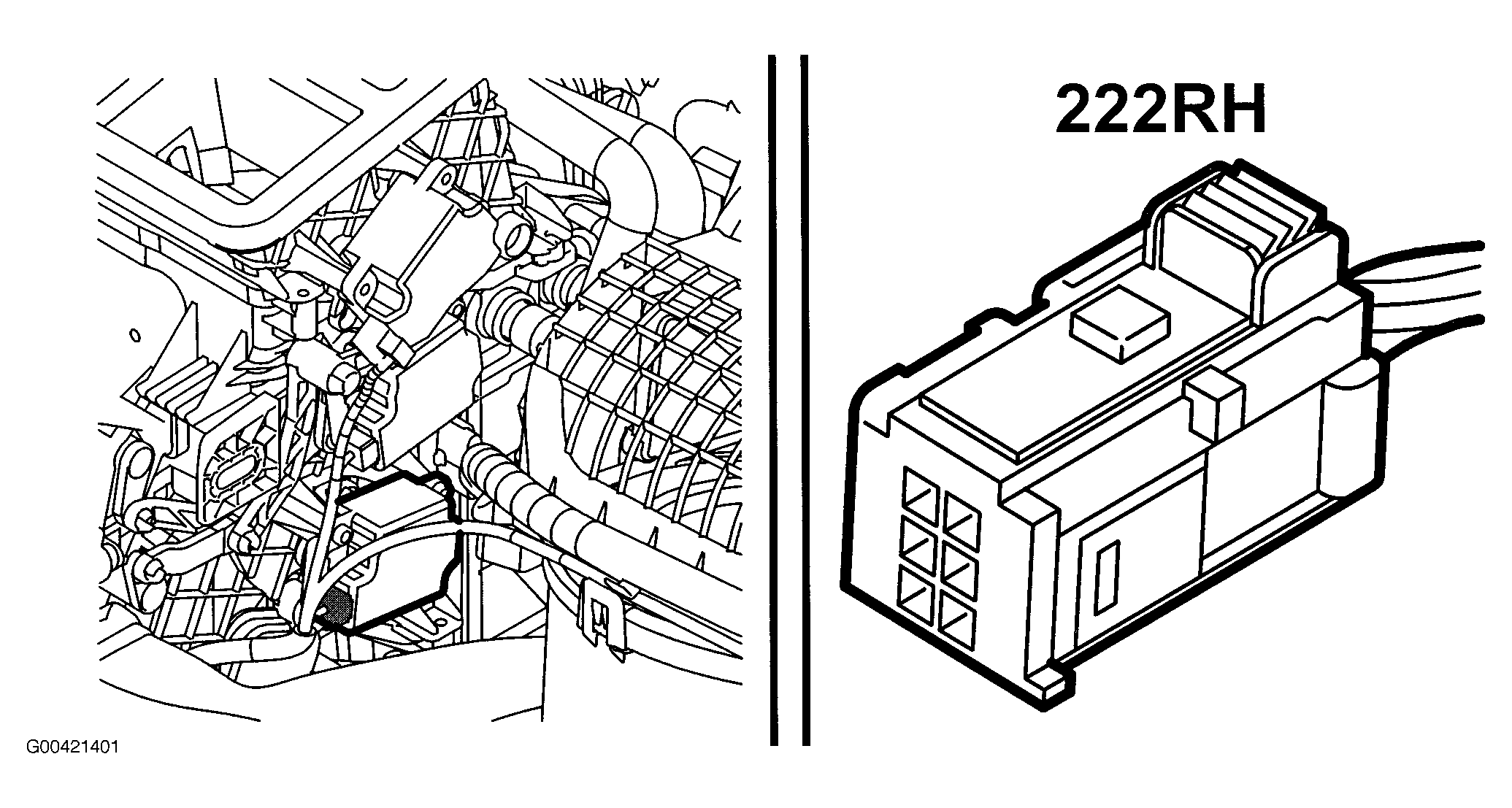

Fig 21: Under Right Side Of Dash

G00421401

Courtesy of SAAB-SCANIA OF AMERICA, INC.

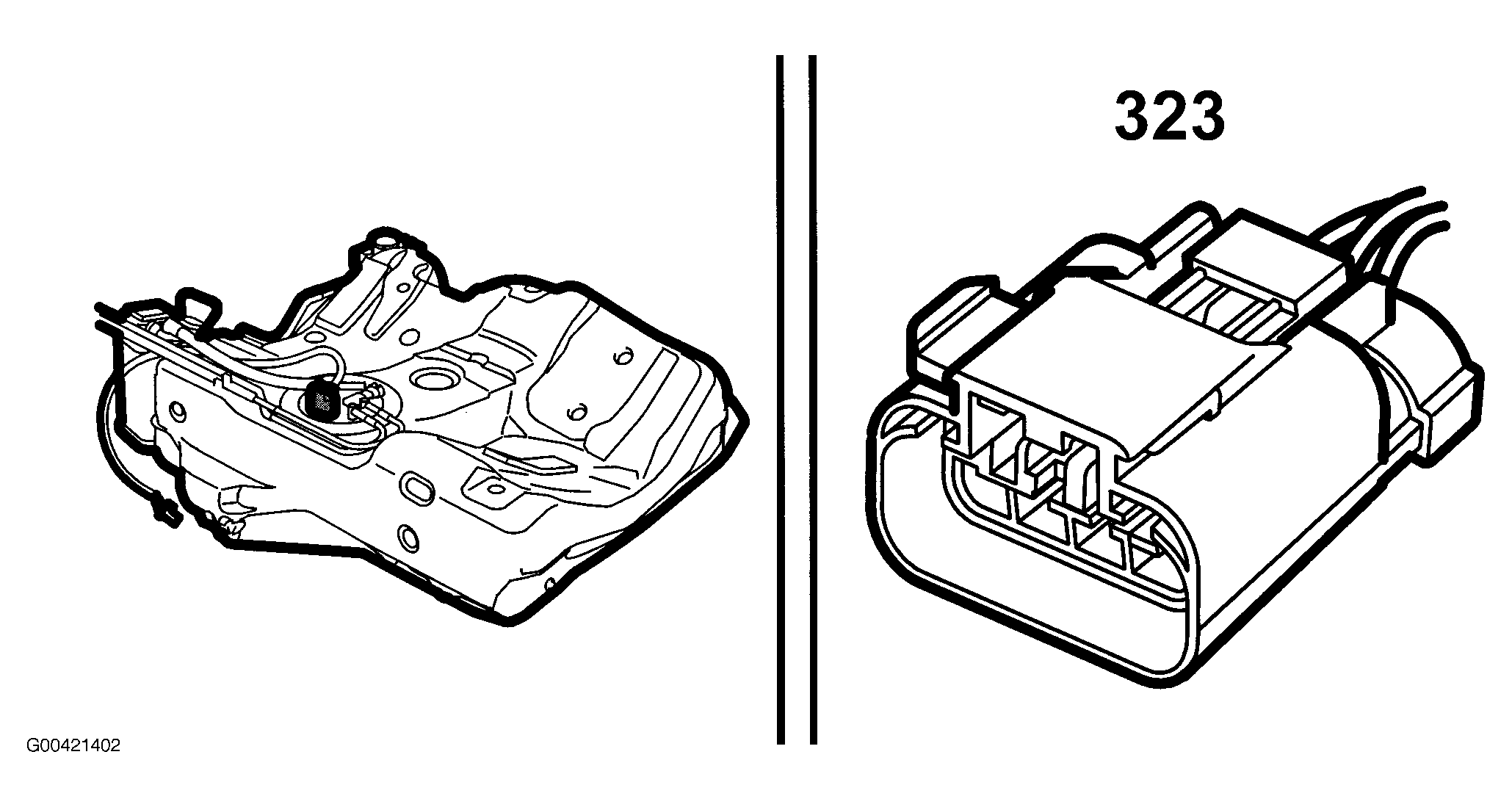

Fig 22: Top Of Fuel Tank

G00421402

Courtesy of SAAB-SCANIA OF AMERICA, INC.

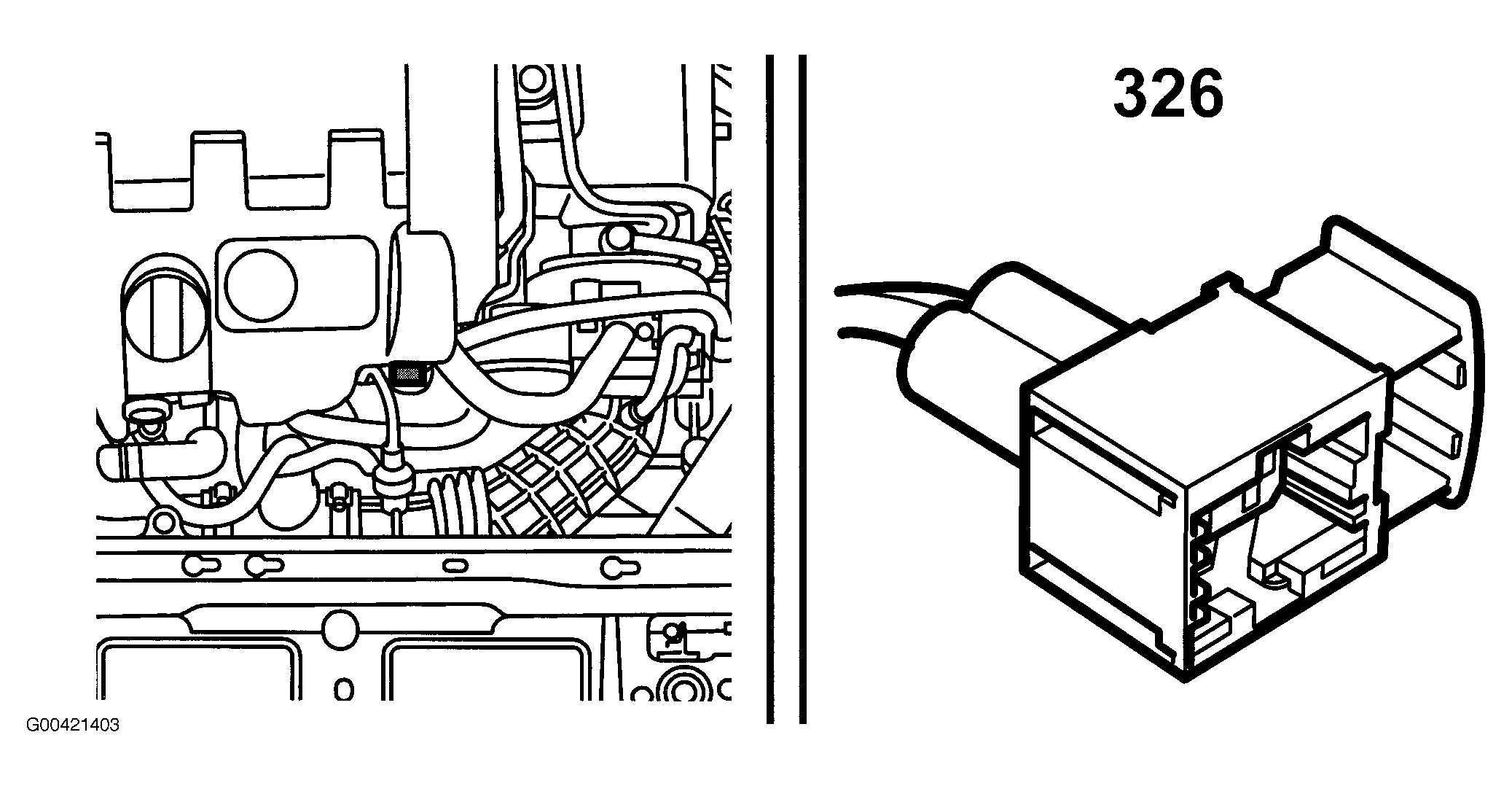

Fig 23: Left Rear Of Engine

G00421403

Courtesy of SAAB-SCANIA OF AMERICA, INC.

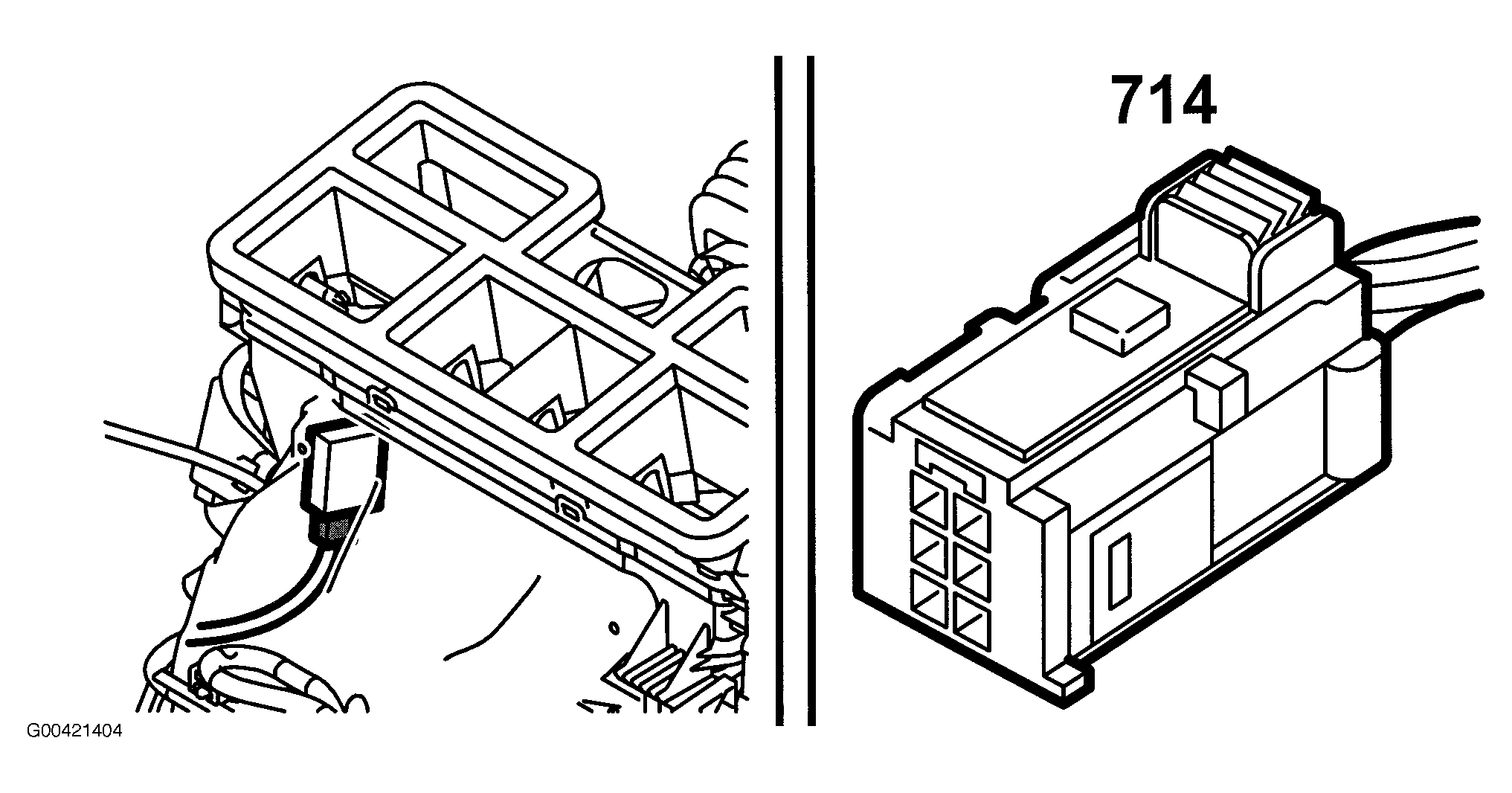

Fig 24: Under Right Side Of Dash

G00421404

Courtesy of SAAB-SCANIA OF AMERICA, INC.

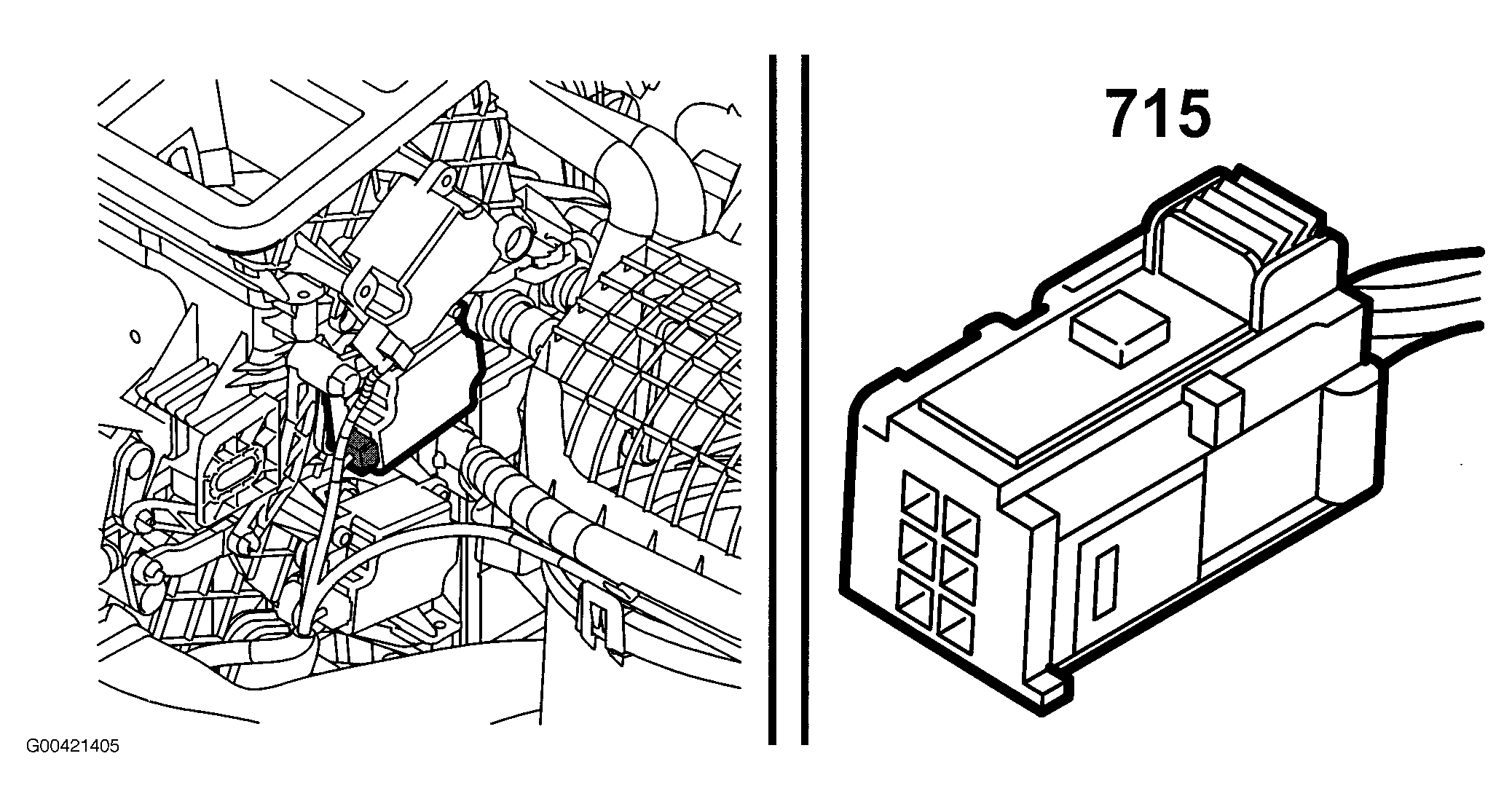

Fig 25: Under Right Side Of Dash

G00421405

Courtesy of SAAB-SCANIA OF AMERICA, INC.

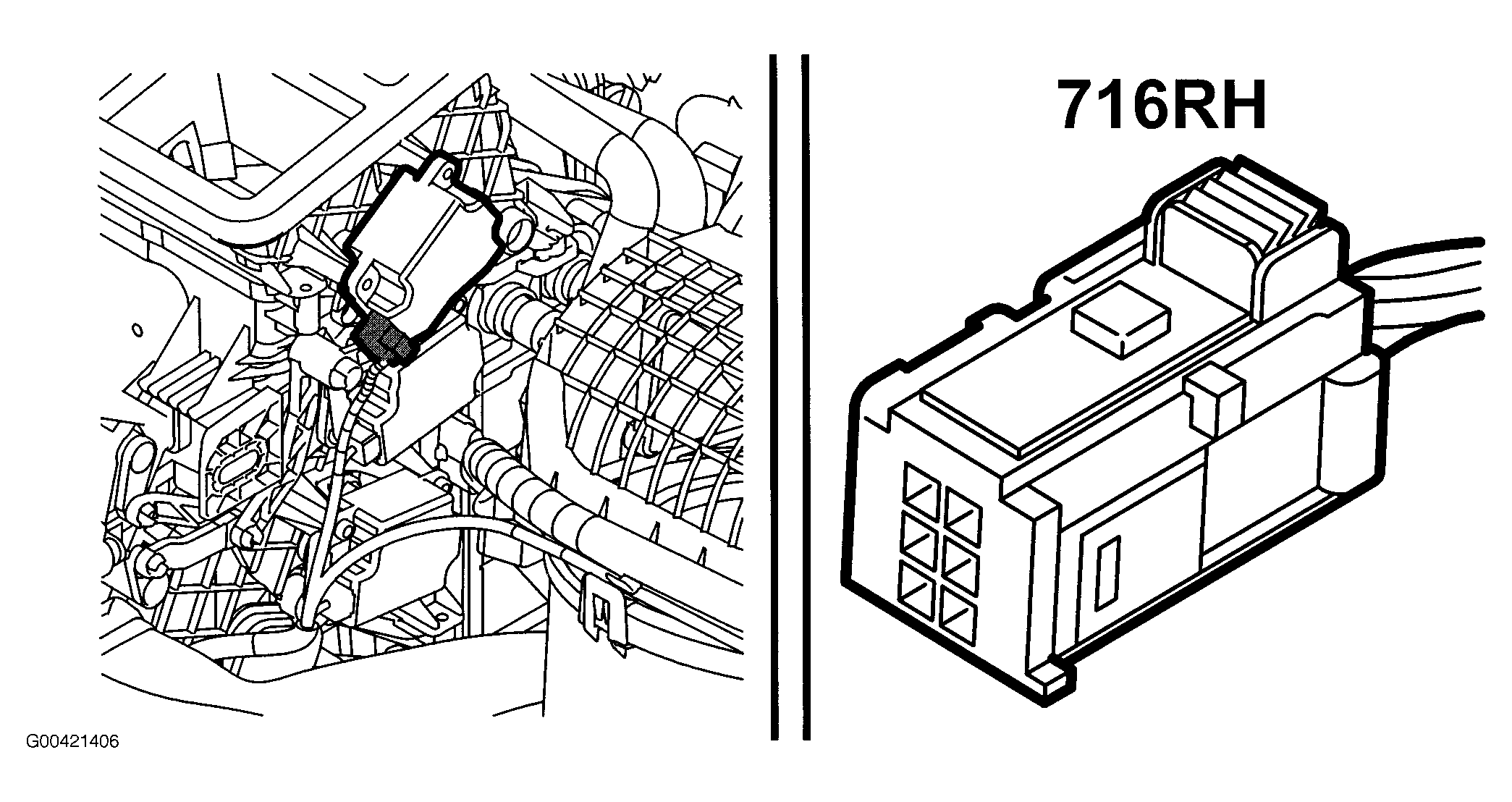

Fig 26: Under Right Side Of Dash

G00421406

Courtesy of SAAB-SCANIA OF AMERICA, INC.

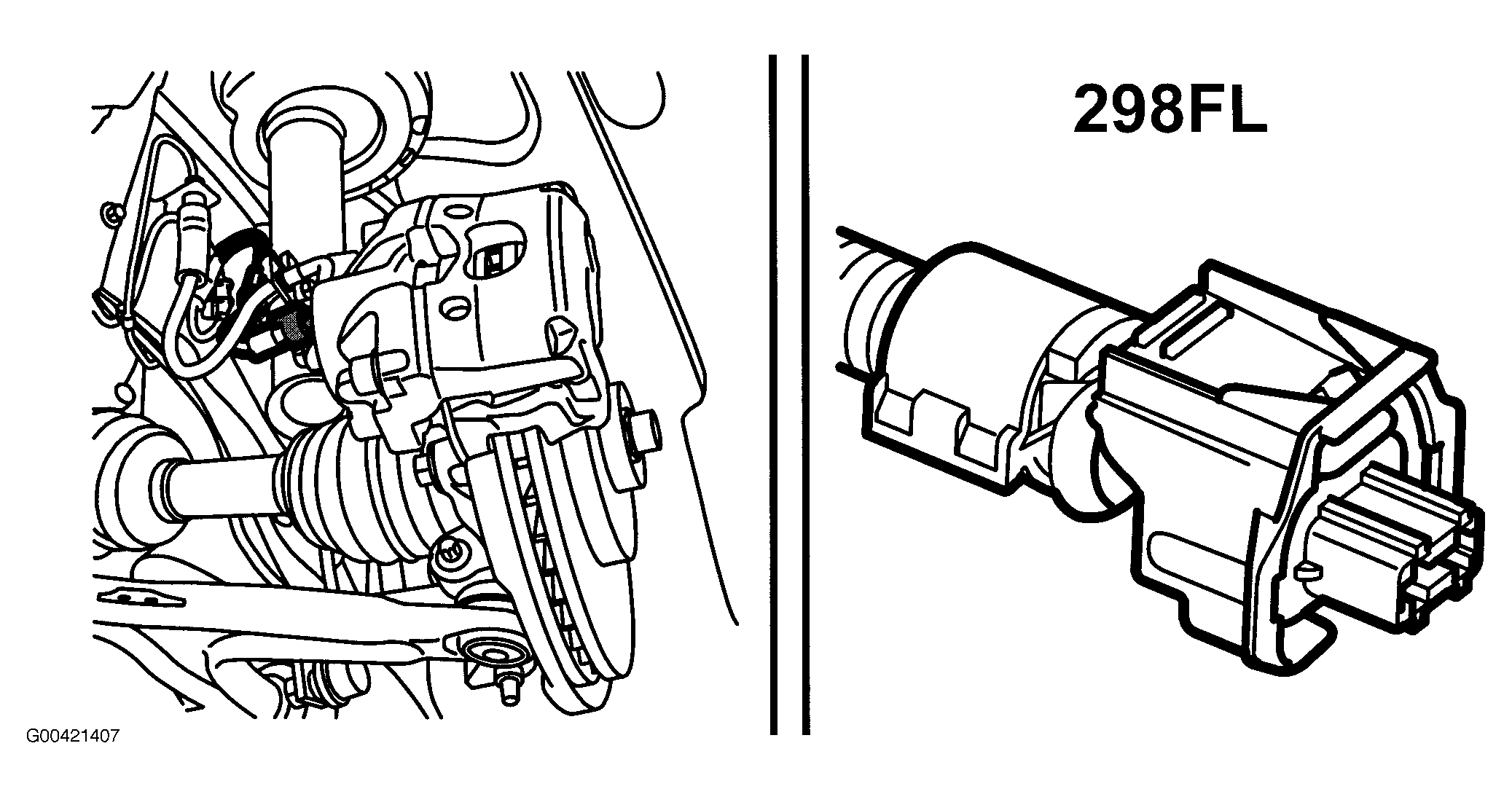

Fig 27: Left Front Wheel Hub Assembly (Right Similar)

G00421407

Courtesy of SAAB-SCANIA OF AMERICA, INC.

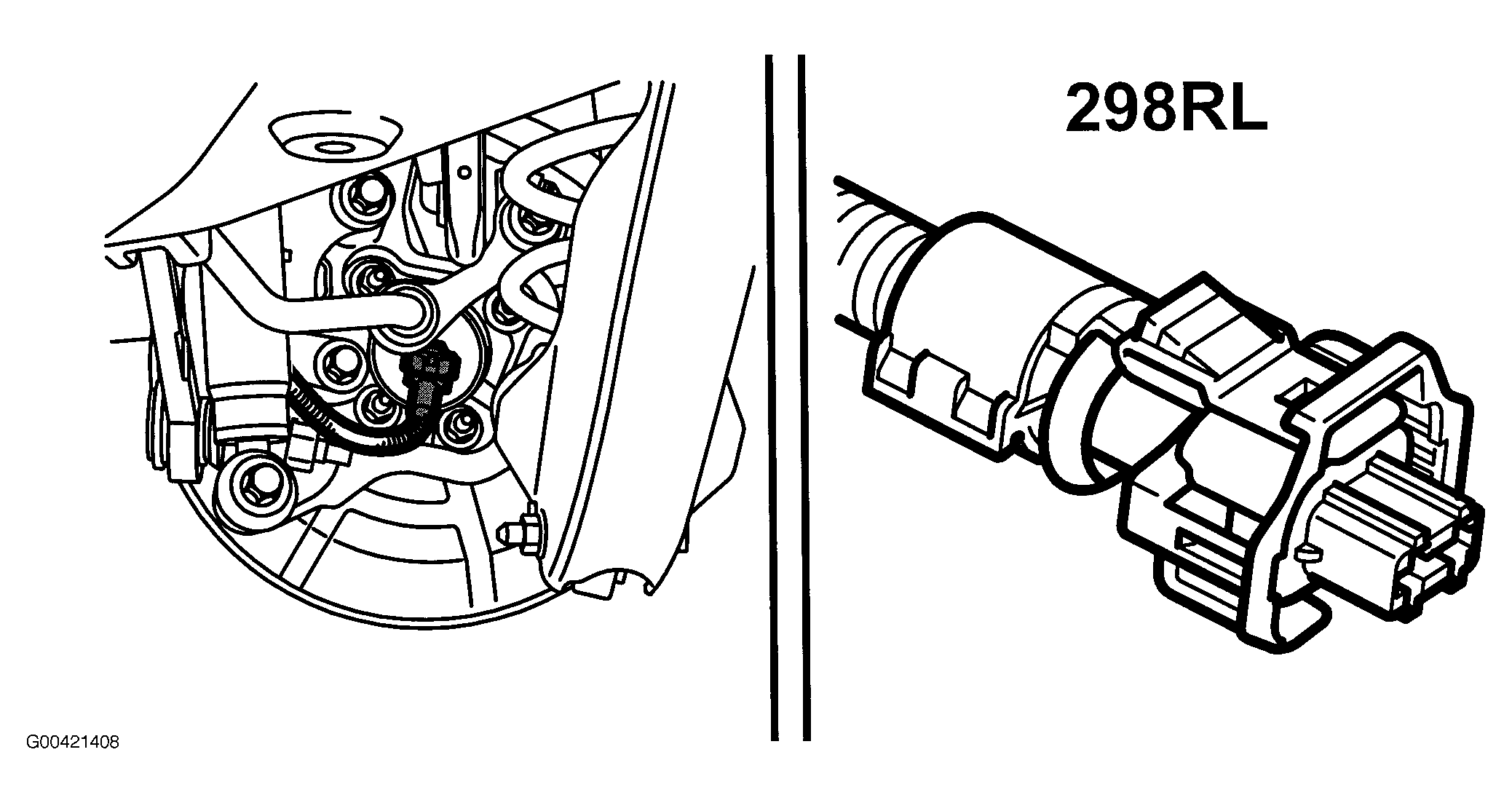

Fig 28: Left Rear Wheel Hub Assembly (Right Similar)

G00421408

Courtesy of SAAB-SCANIA OF AMERICA, INC.

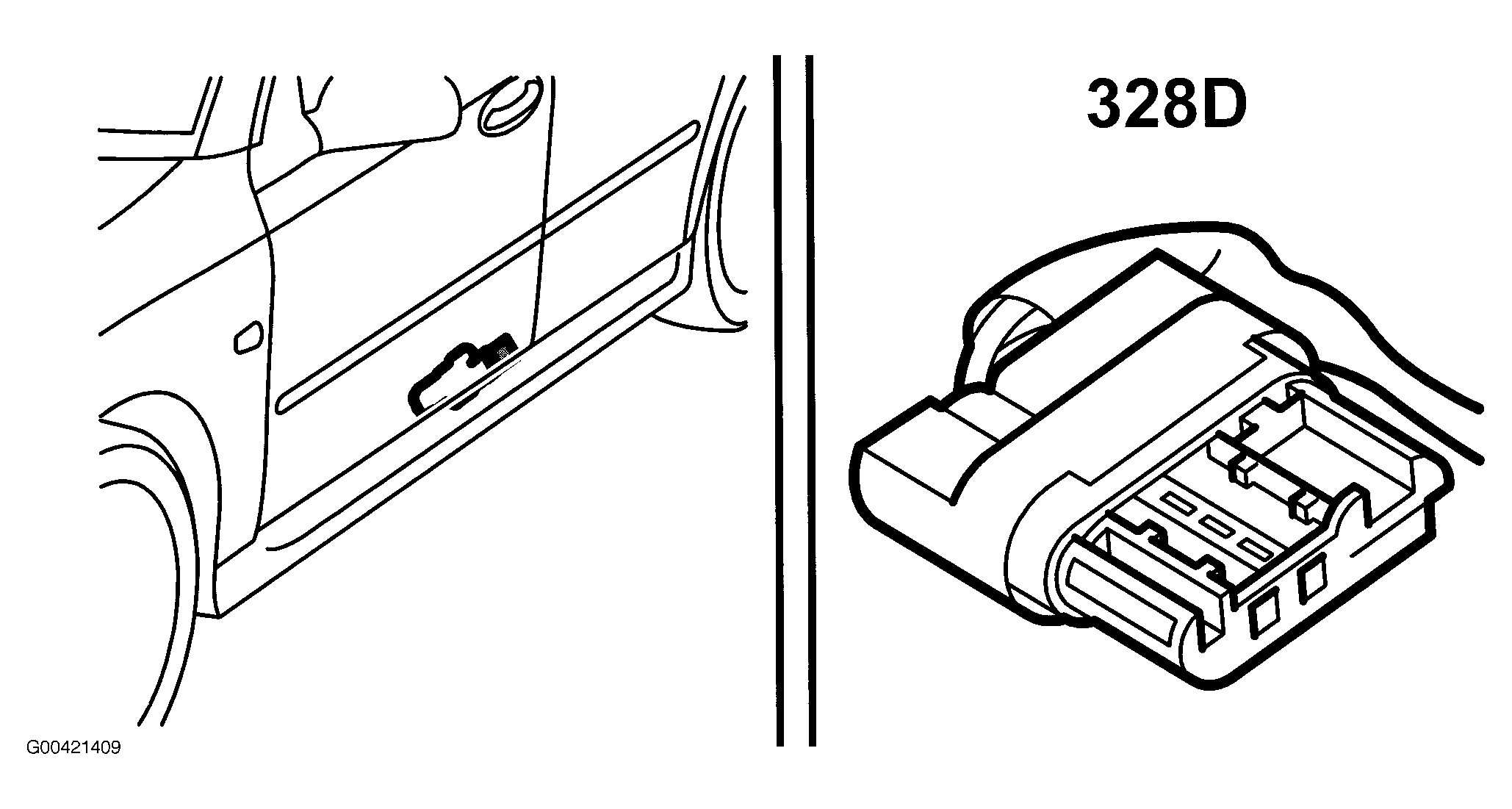

Fig 29: Base Of Left "B" Pillar (Right Similar)

G00421409

Courtesy of SAAB-SCANIA OF AMERICA, INC.

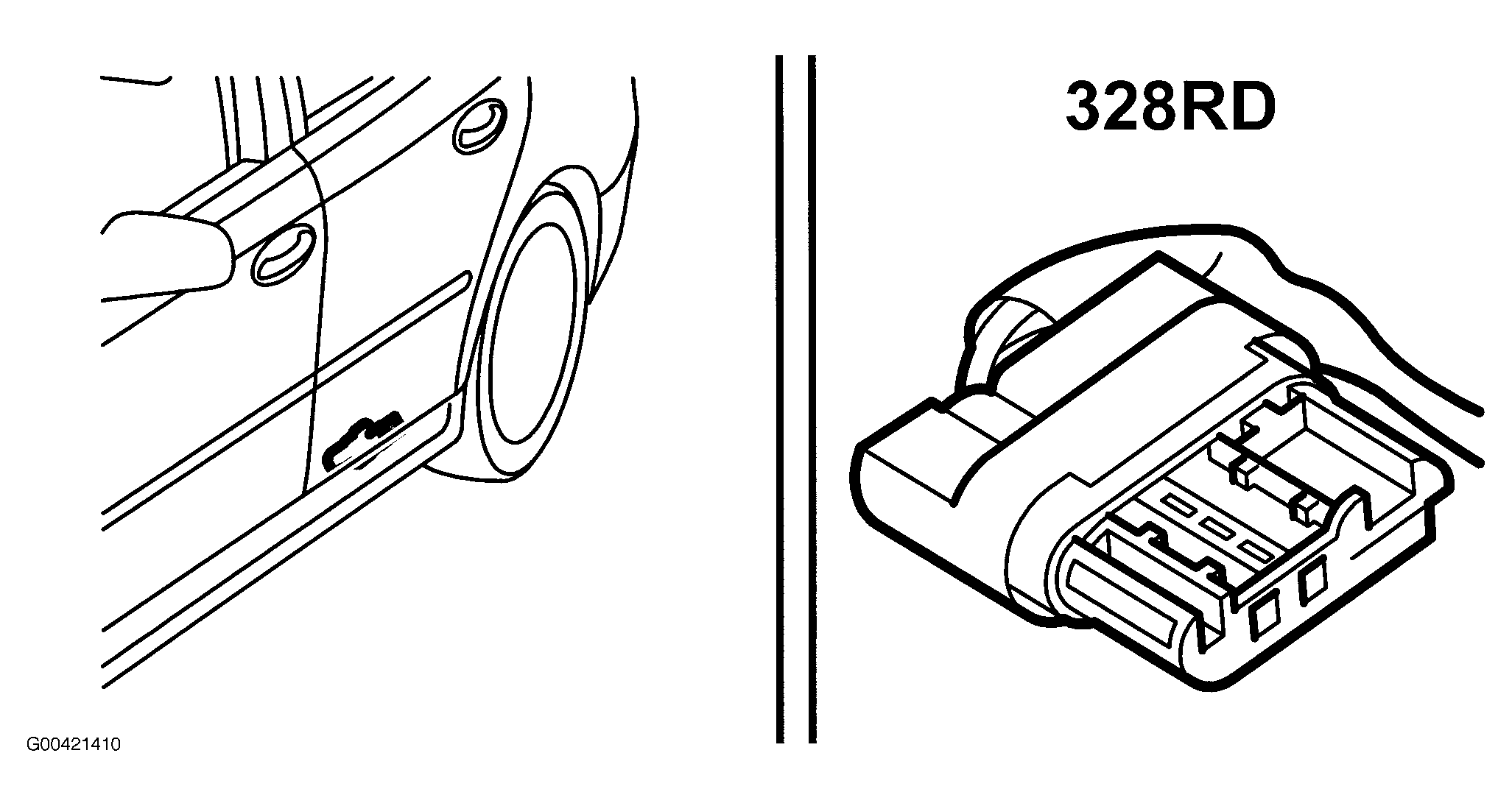

Fig 30: Base Of Left "C" Pillar (Right Similar)

G00421410

Courtesy of SAAB-SCANIA OF AMERICA, INC.

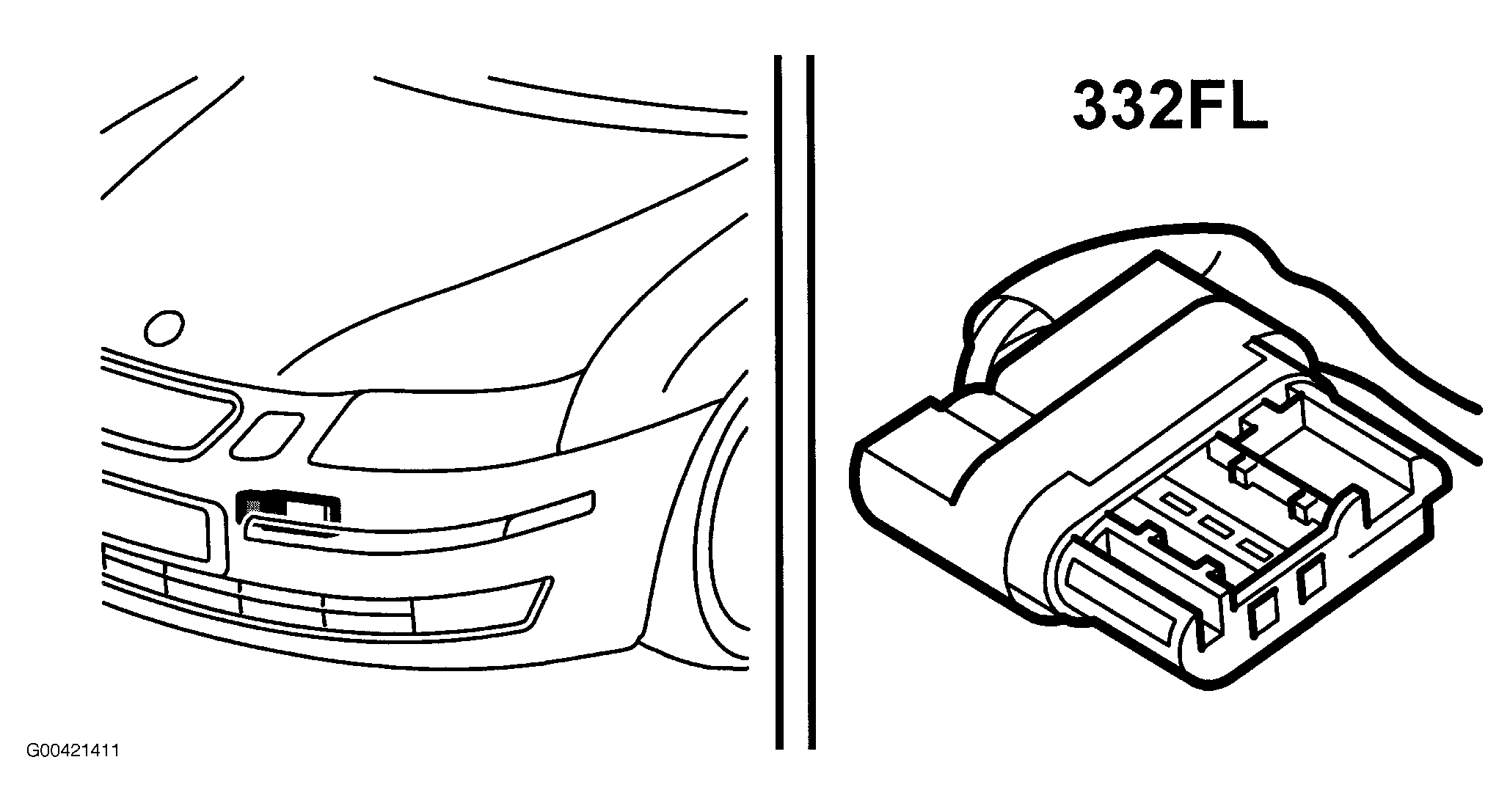

Fig 31: Behind Left Side Of Front Bumper (Right Similar)

G00421411

Courtesy of SAAB-SCANIA OF AMERICA, INC.

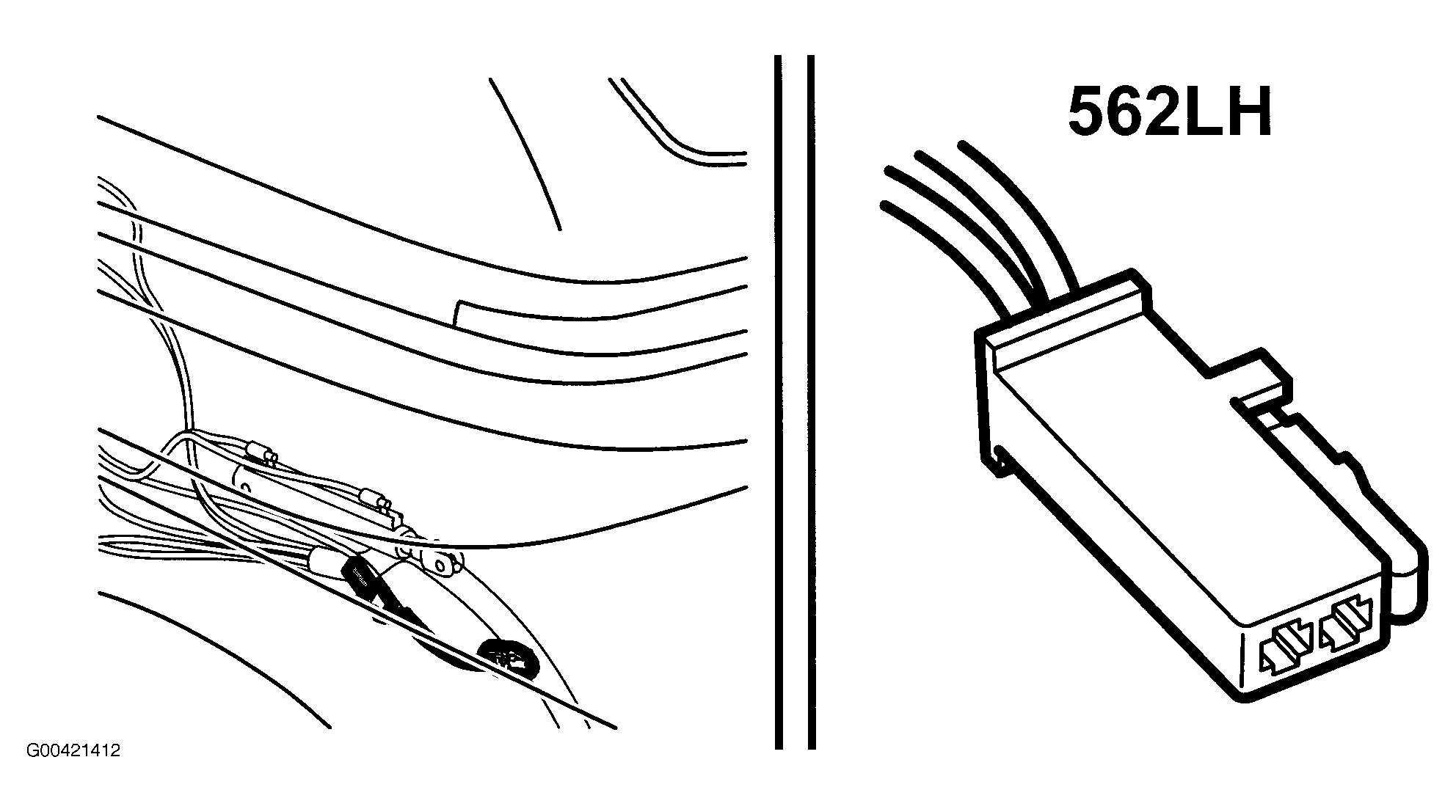

Fig 32: Forward Of Left Rear Wheelwell

G00421412

Courtesy of SAAB-SCANIA OF AMERICA, INC.

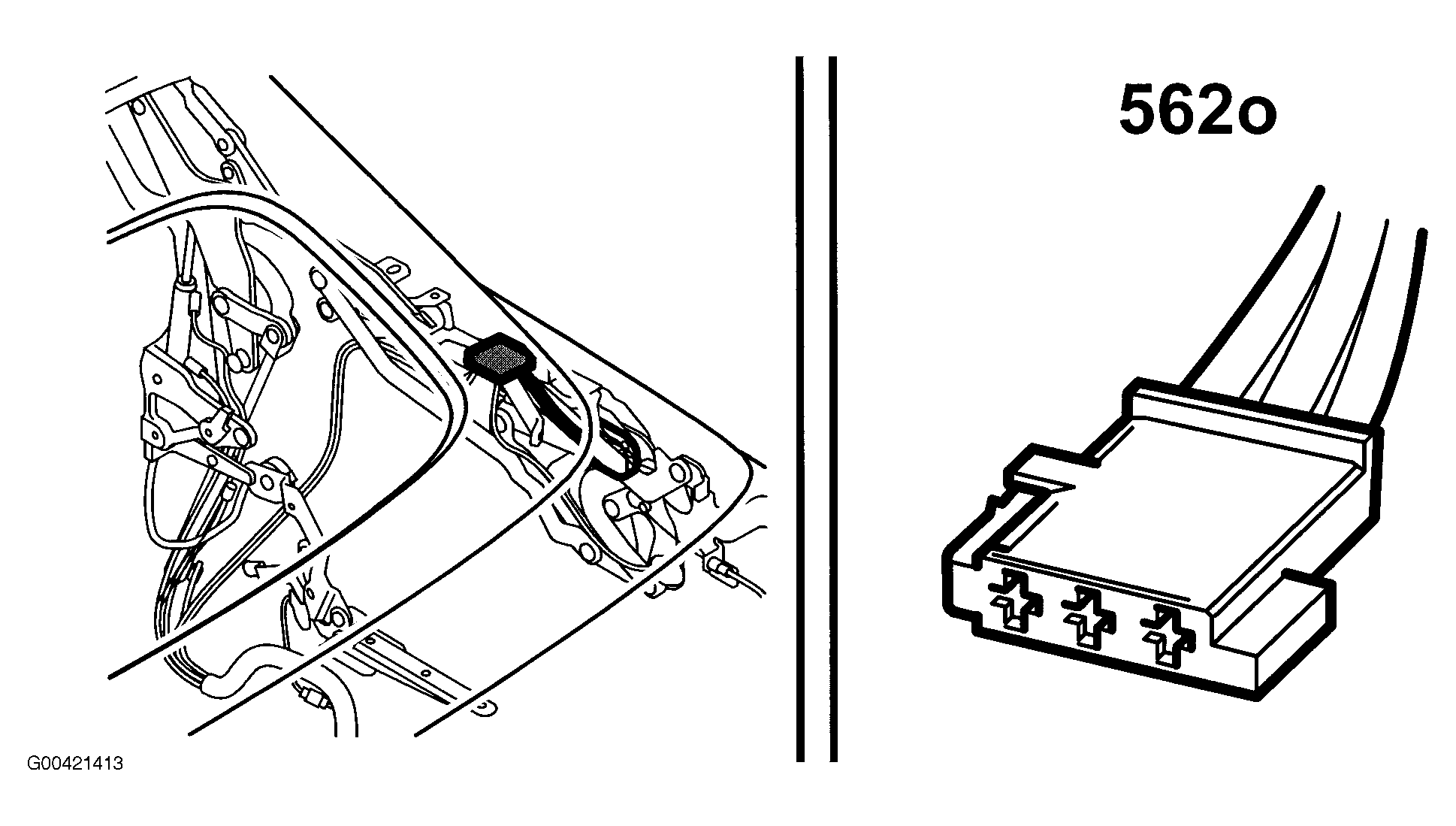

Fig 33: Forward Of Right Rear Wheelwell

G00421413

Courtesy of SAAB-SCANIA OF AMERICA, INC.

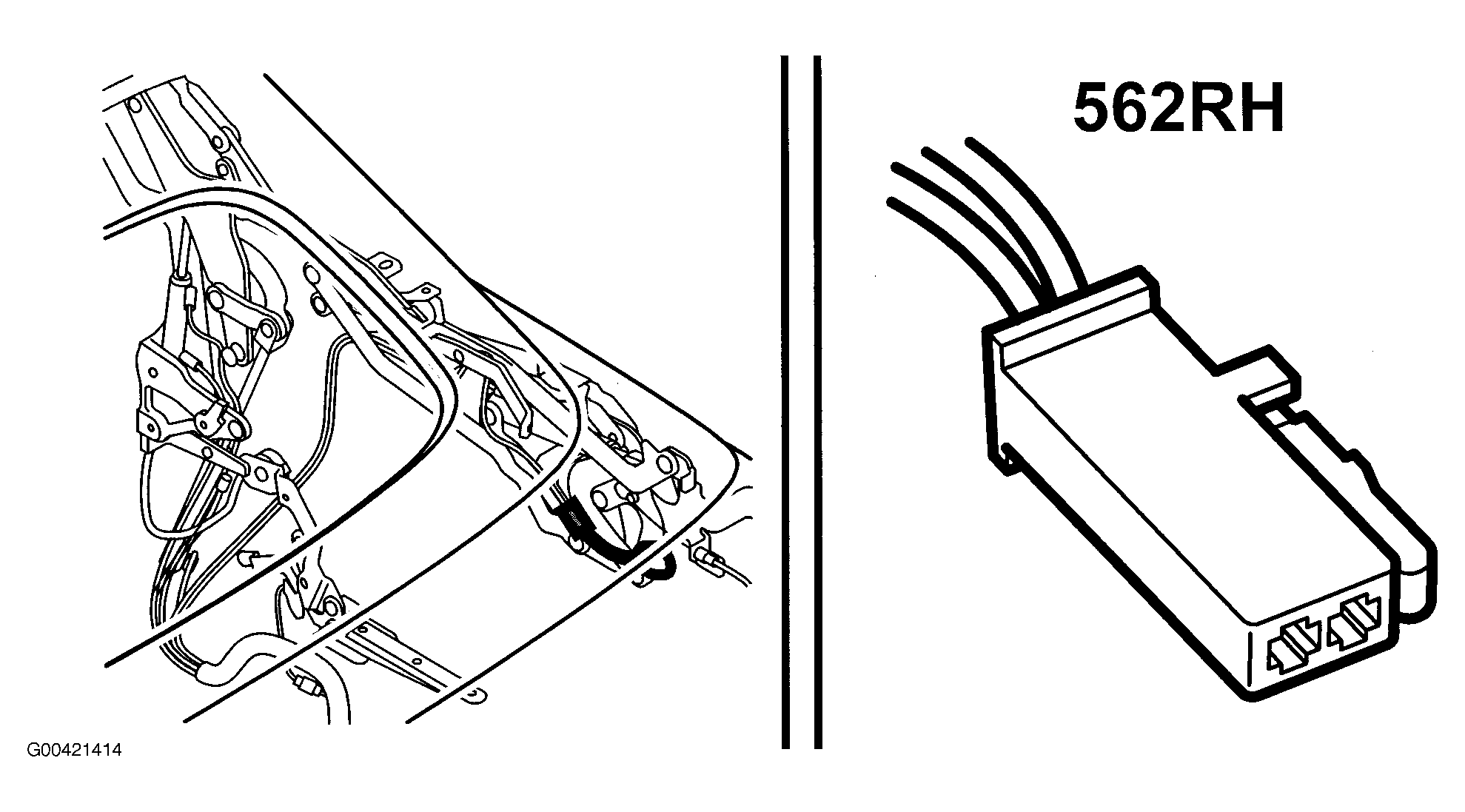

Fig 34: Forward Of Right Rear Wheelwell

G00421414

Courtesy of SAAB-SCANIA OF AMERICA, INC.

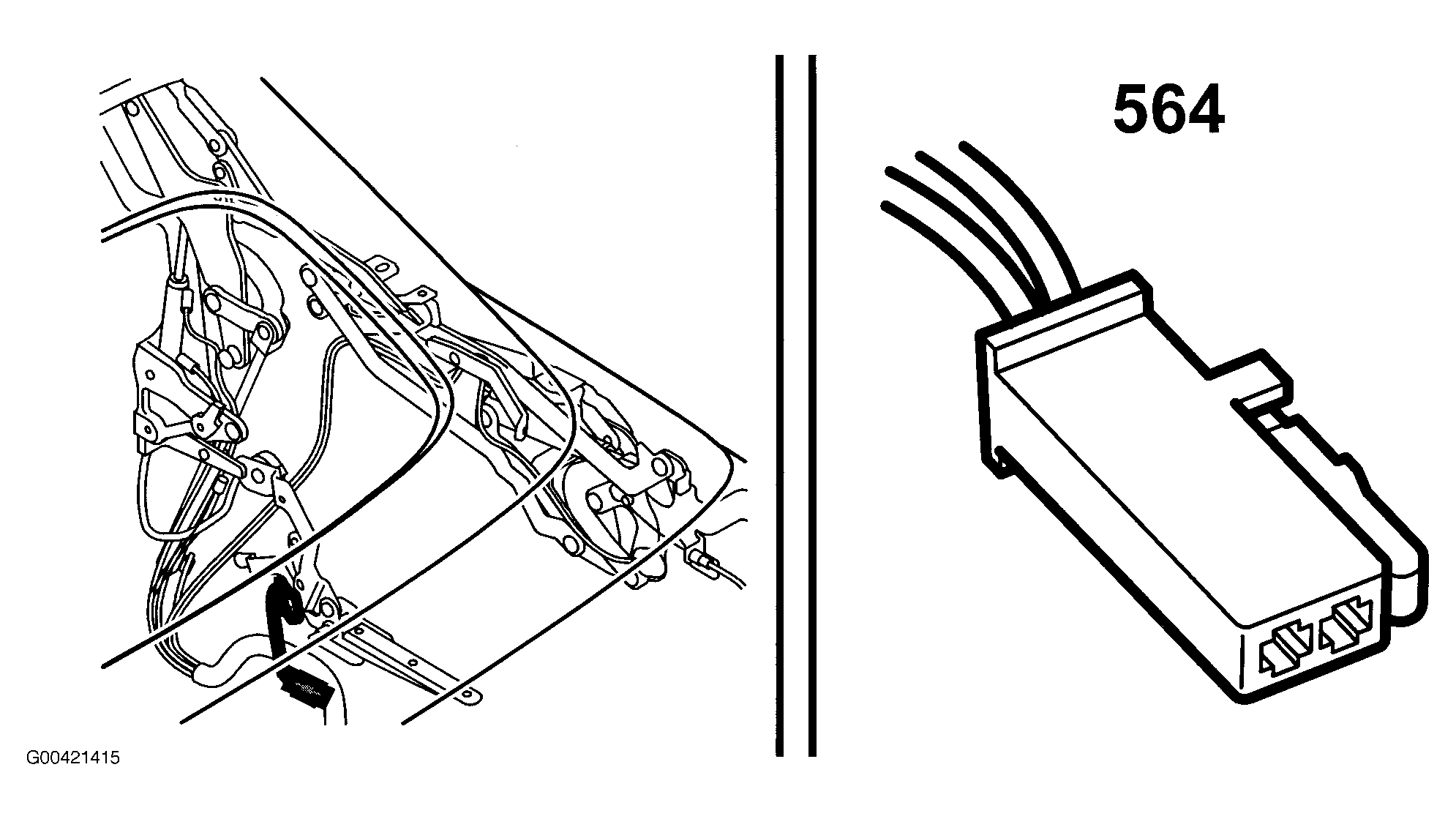

Fig 35: Forward Of Right Rear Wheelwell

G00421415

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 36: Forward Of Right Rear Wheelwell

G00421416

Courtesy of SAAB-SCANIA OF AMERICA, INC.

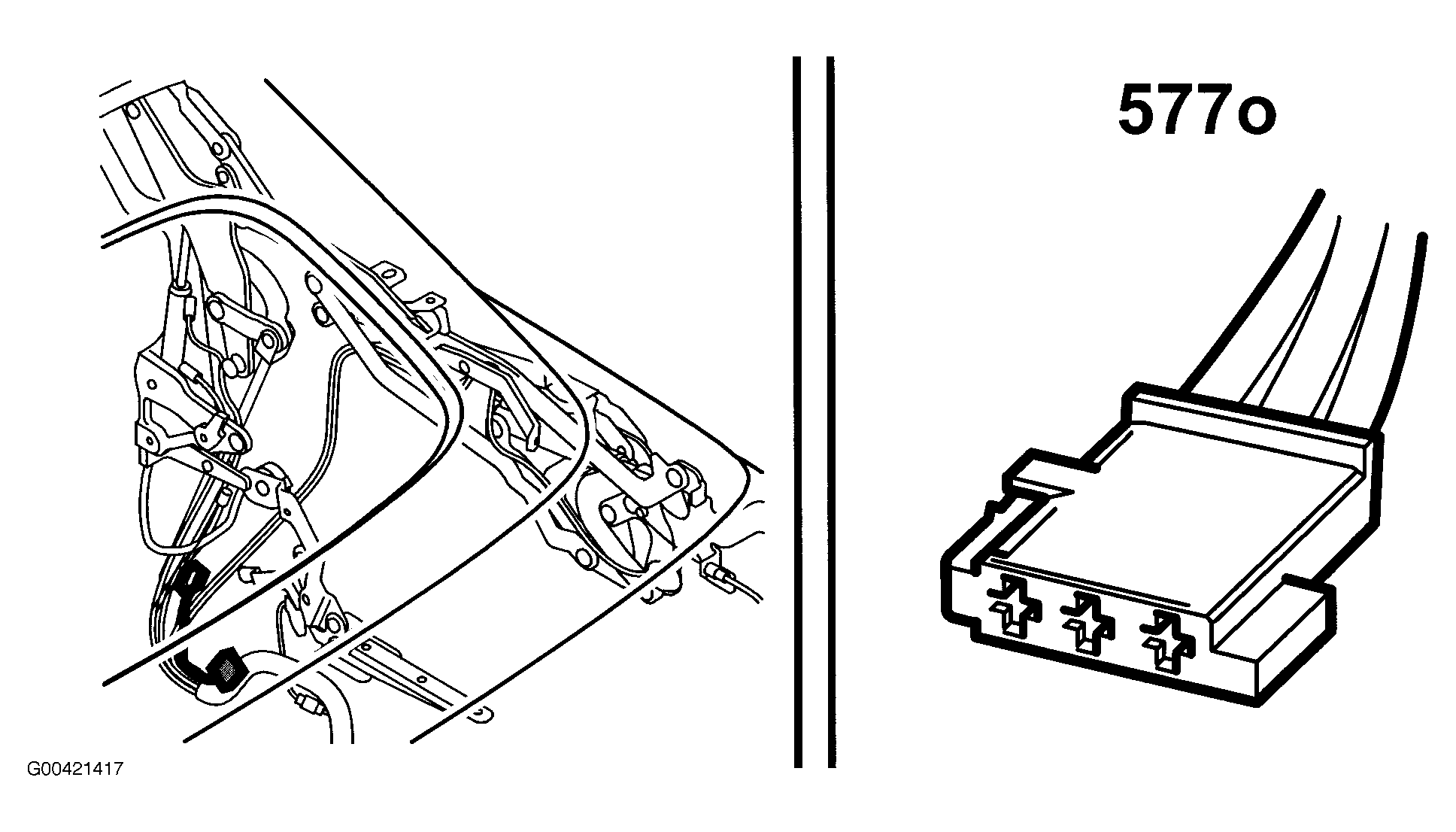

Fig 37: Forward Of Right Rear Wheelwell

G00421417

Courtesy of SAAB-SCANIA OF AMERICA, INC.

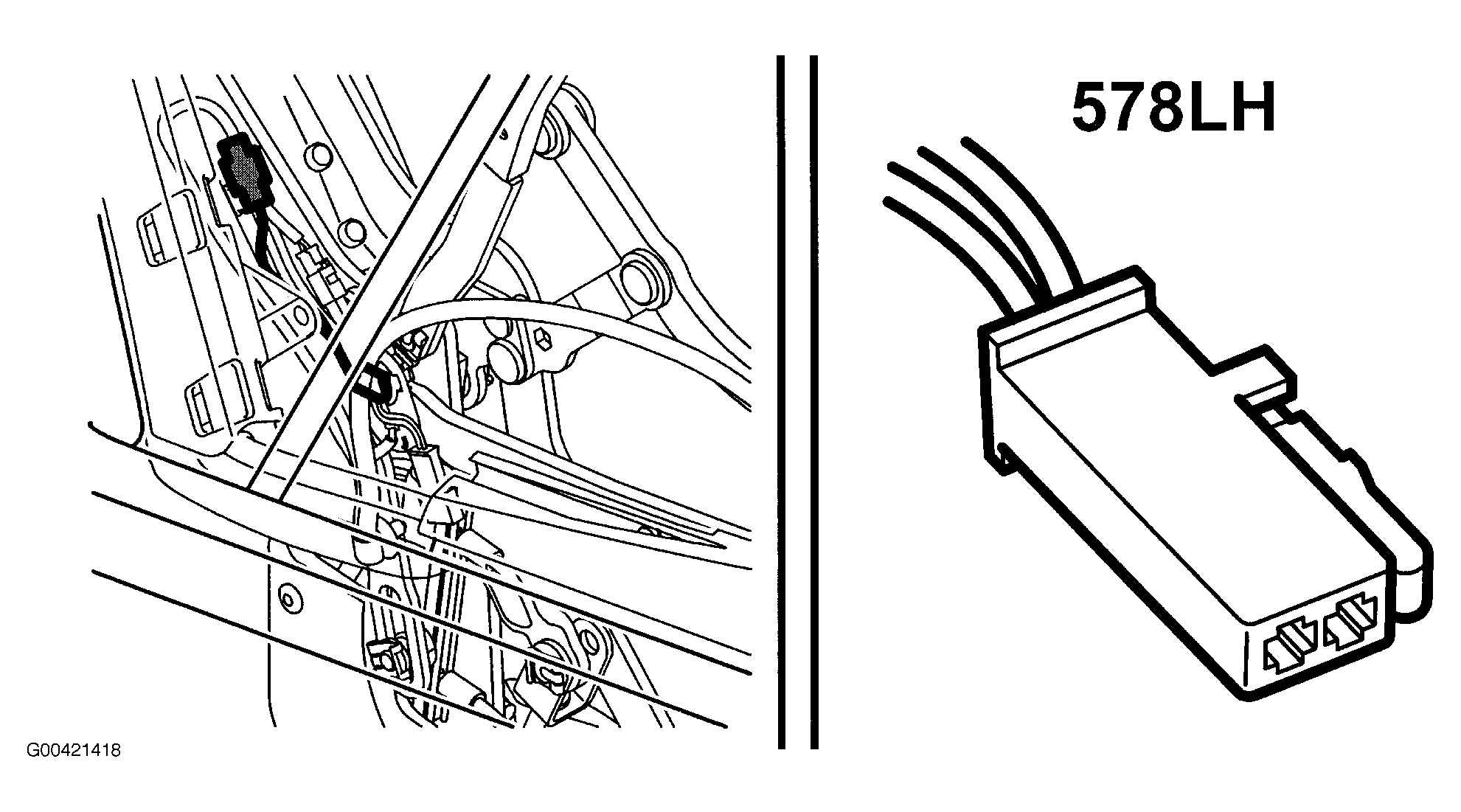

Fig 38: Left Side Bow Hinge Assemblies

G00421418

Courtesy of SAAB-SCANIA OF AMERICA, INC.

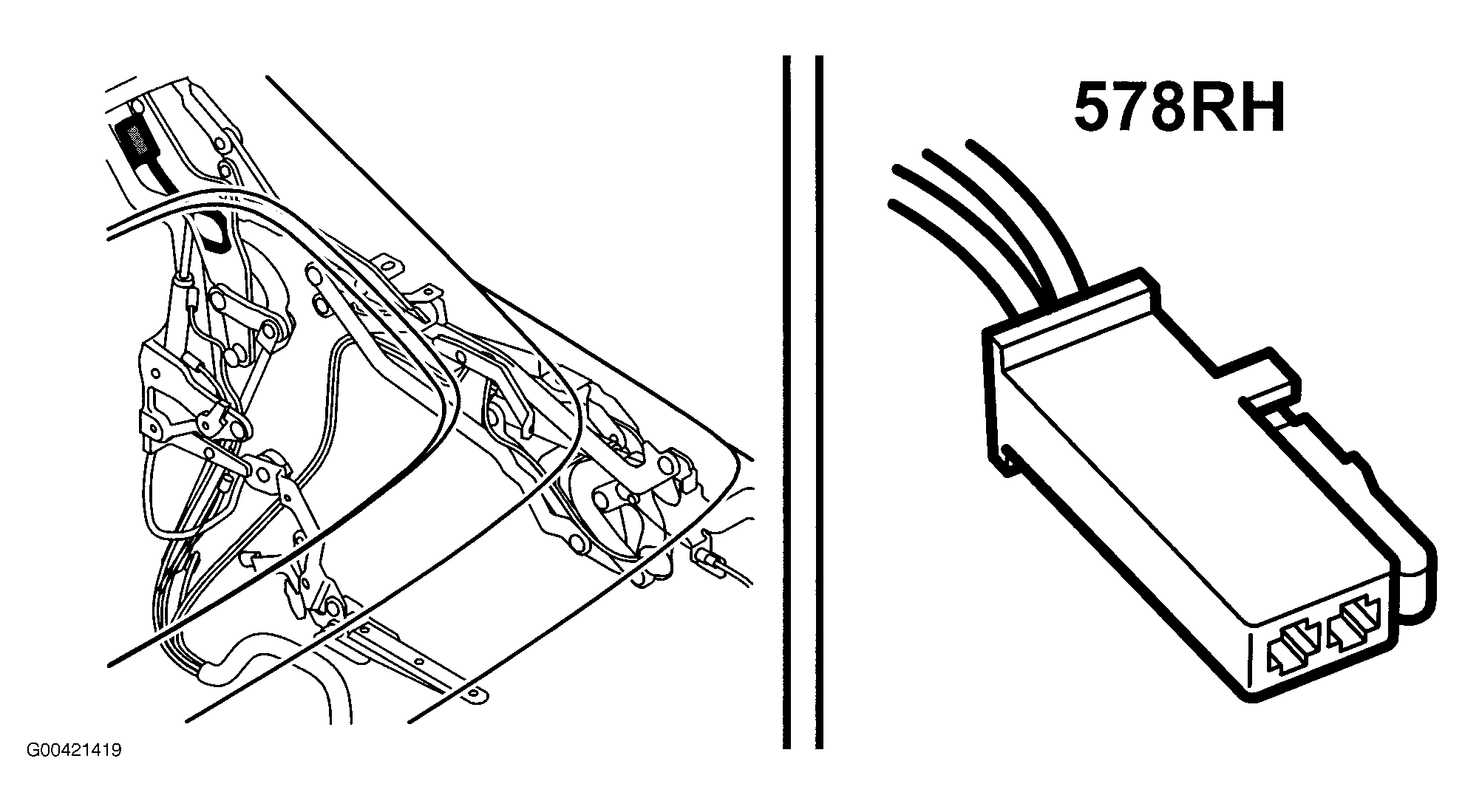

Fig 39: Right Side Bow Hinge Assemblies

G00421419

Courtesy of SAAB-SCANIA OF AMERICA, INC.

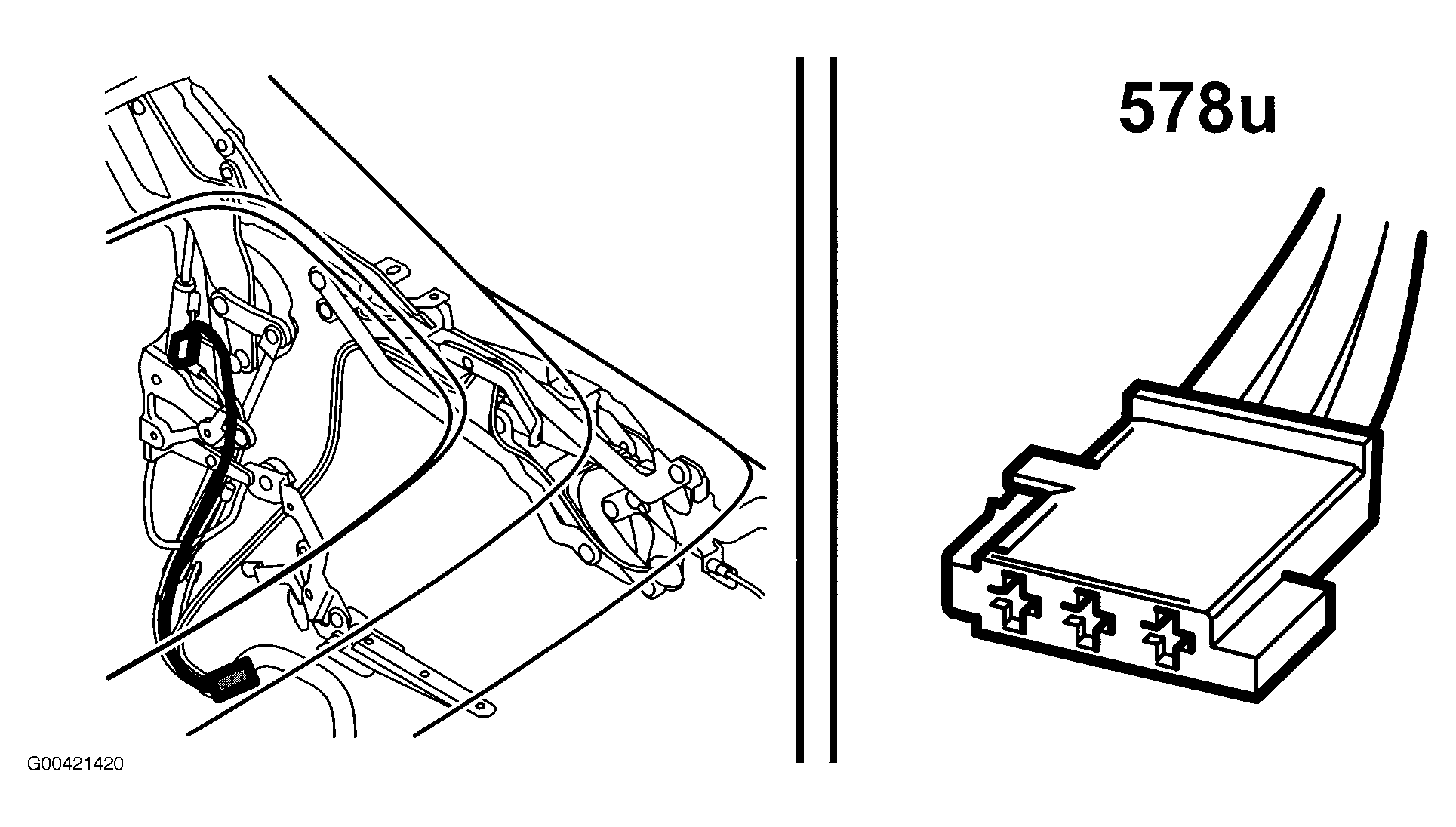

Fig 40: Forward Of Right Rear Wheelwell

G00421420

Courtesy of SAAB-SCANIA OF AMERICA, INC.

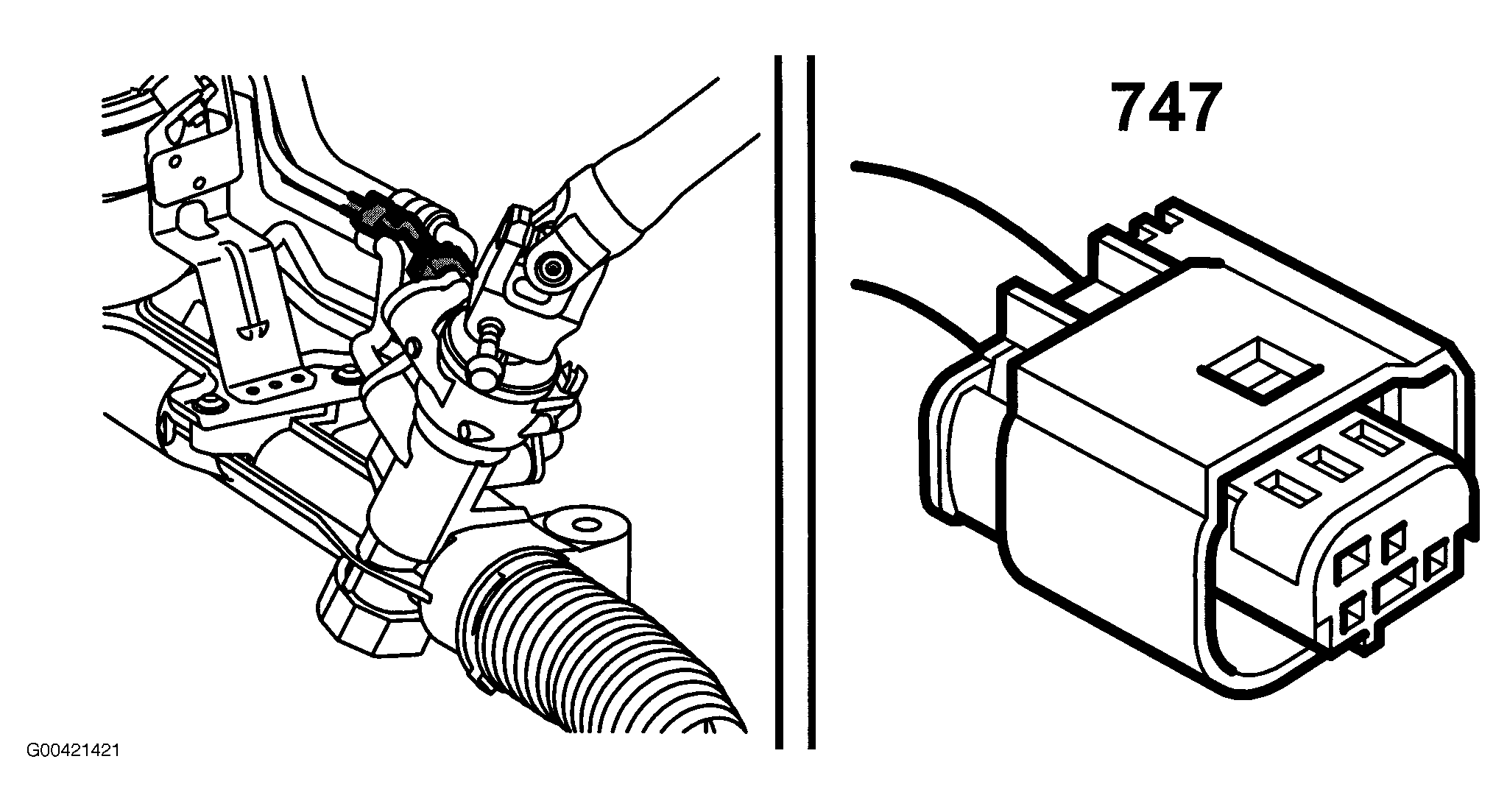

Fig 41: Lower Left Rear Of Engine Compartment

G00421421

Courtesy of SAAB-SCANIA OF AMERICA, INC.

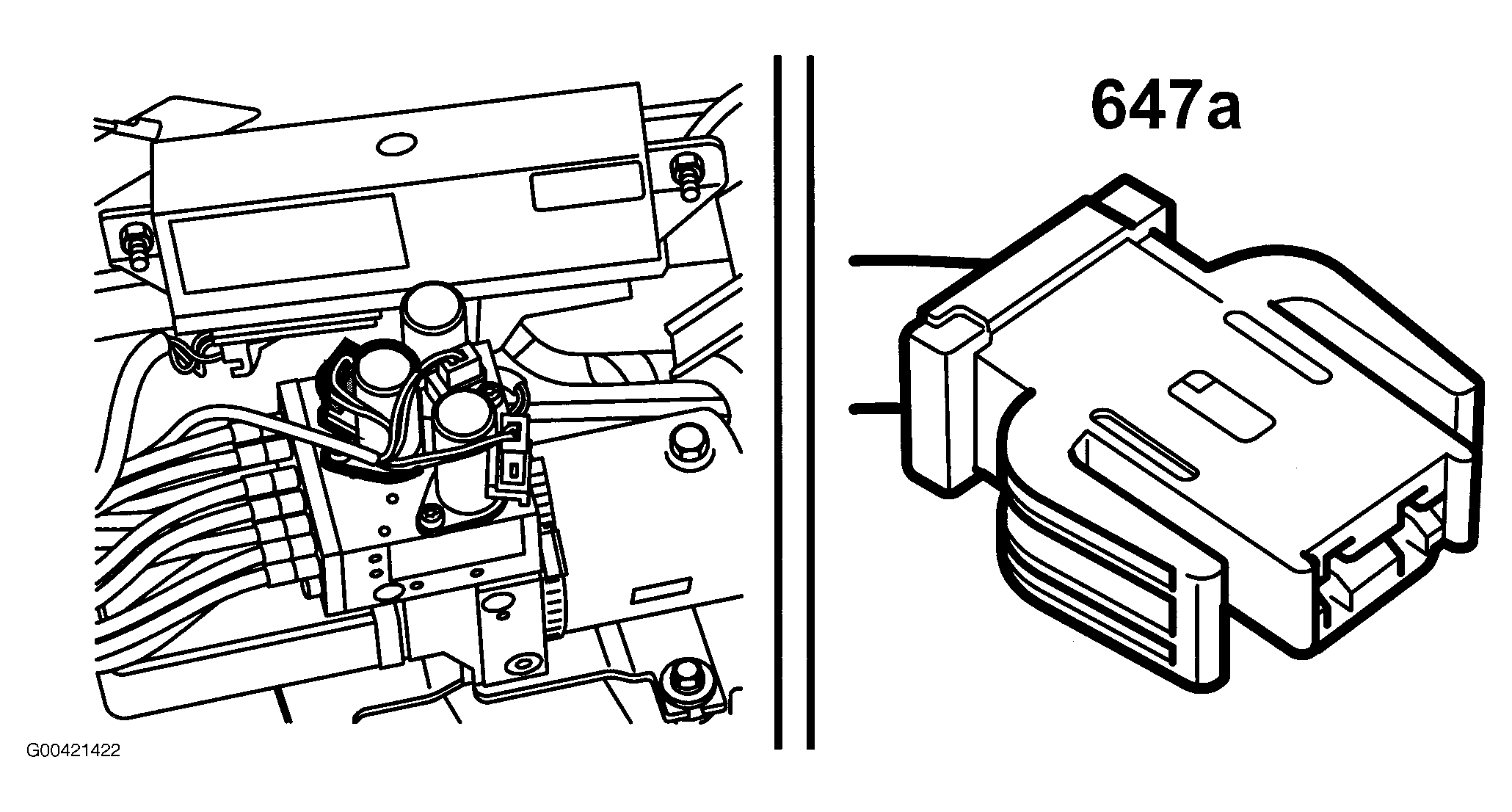

Fig 42: Near Right Rear Wheelwell

G00421422

Courtesy of SAAB-SCANIA OF AMERICA, INC.

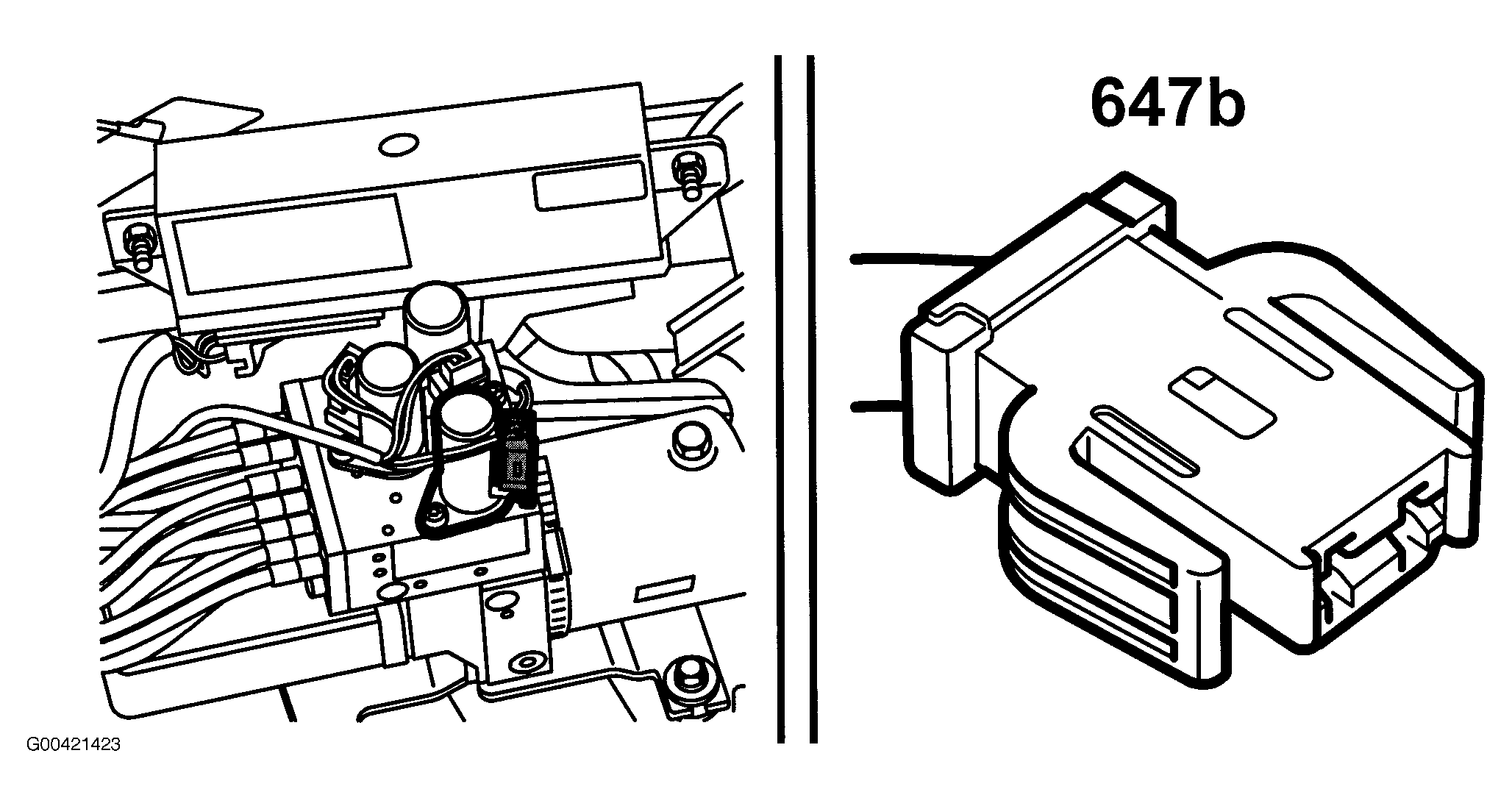

Fig 43: Near Right Rear Wheelwell

G00421423

Courtesy of SAAB-SCANIA OF AMERICA, INC.

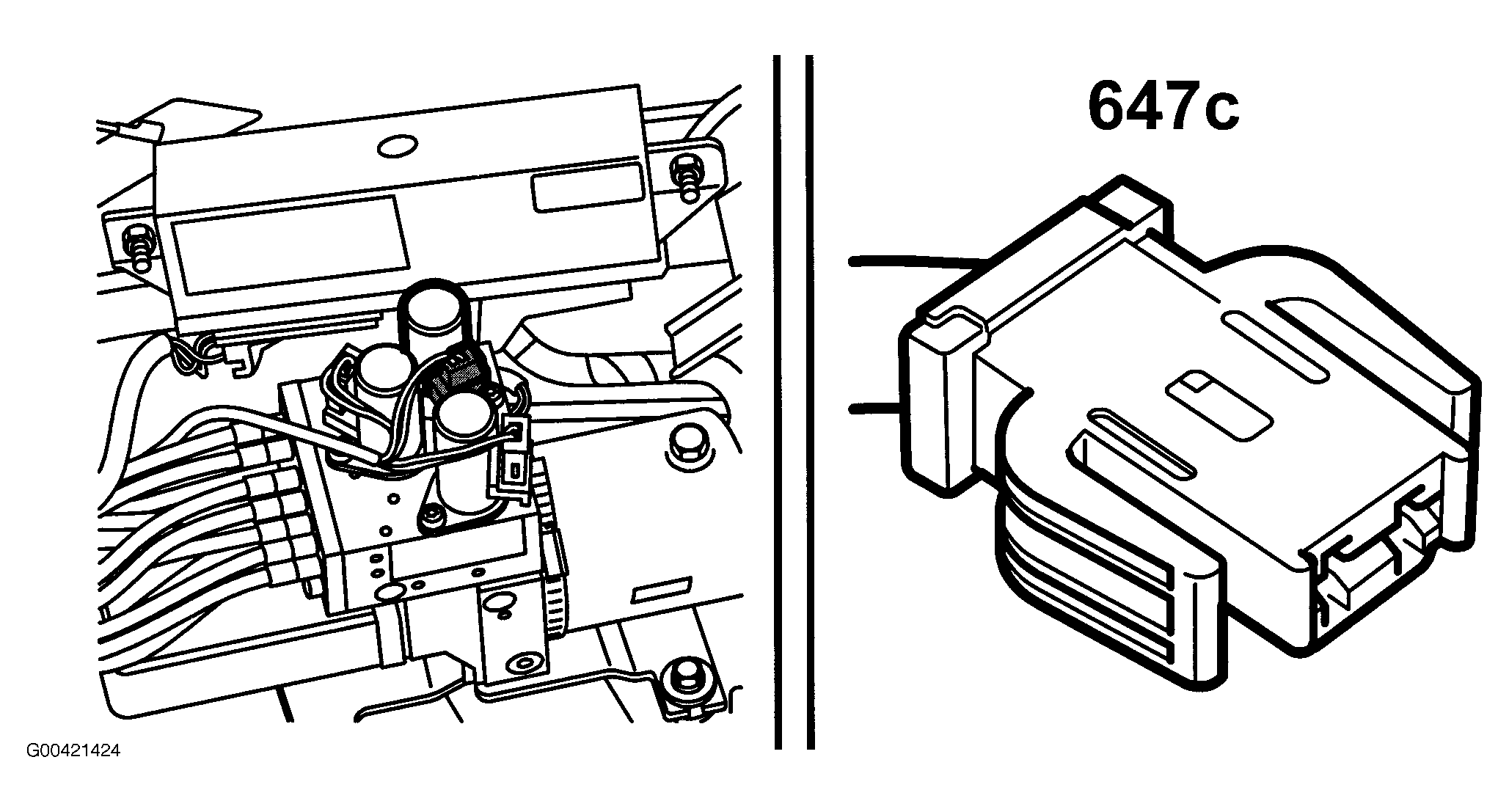

Fig 44: Near Right Rear Wheelwell

G00421424

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 45: Under Left Side Of Dash

G00421425

Courtesy of SAAB-SCANIA OF AMERICA, INC.
