To remove

Carry out PROCEDURES BEFORE DISMANTLING THE CONTROL MODULE .

1. Move seat to its highest position.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
2. Disconnect the connector from the control module.

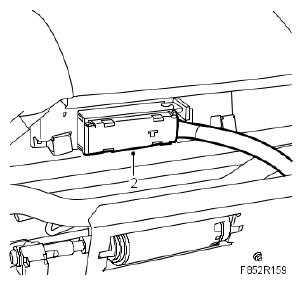

   Fig 1: Disconnecting Connector From Control Module

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Remove the upholstery from the seat front edge.
   Fig 2: Removing Upholstery From Seat Front Edge

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Remove the cable tie.
   Fig 3: Removing Cable Tie

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Push the control module back so that it detaches.

Fig 4: Identifying Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.
