To remove

  1. Raise the seat and fold the backrest forward.
  2. Remove the backrest cover.
  3. Unplug the connector from the microswitch.
    Fig 1: Unplugging Connector From Microswitch
    G05066101Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Reposition the backrest. Make sure it locks in position.
  5. Remove the screw and control unit from the seat frame.
  6. Remove the retaining clips from the cable.

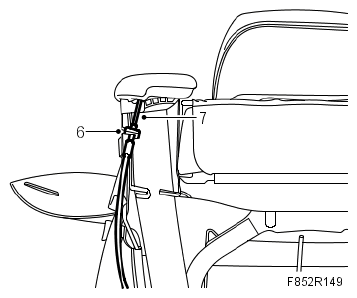

    Fig 2: Removing Cable From Control Arm
    G05066102Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the cable from the control arm.
