To fit

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the linkage arm with 32 025 041 Silicone grease. Lift up the recirculation flap using a screwdriver. Put the recirculation motor in place and fit its bolts.

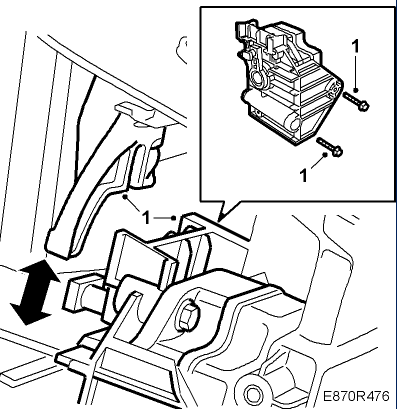

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the contact.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Replace the side trim on the center console.
Fit the glove box. See GLOVE BOX .

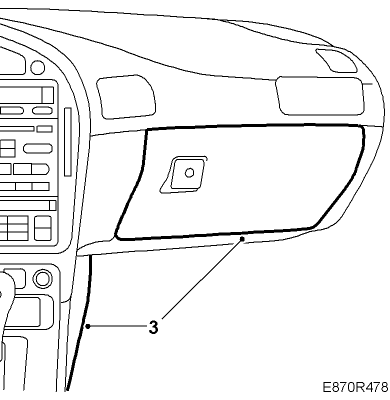

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
