Principal Components

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

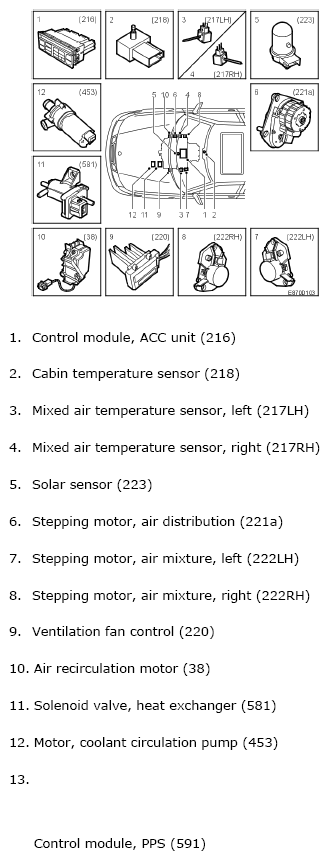

Fig 1: Identifying Automatic Climate Control System Principal Components (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

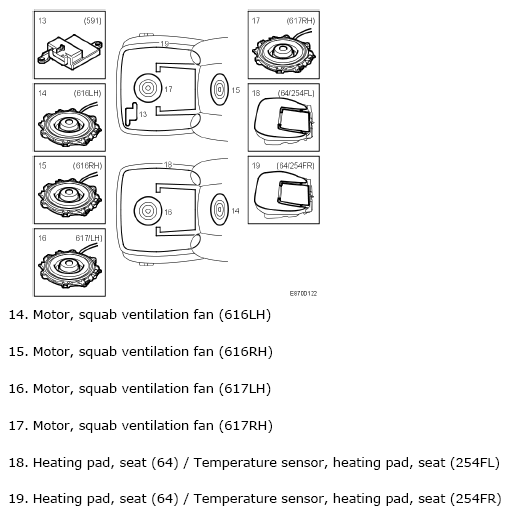

Fig 2: Identifying Automatic Climate Control System Principal Components (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
