Cabin Temperature Sensor (218)
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

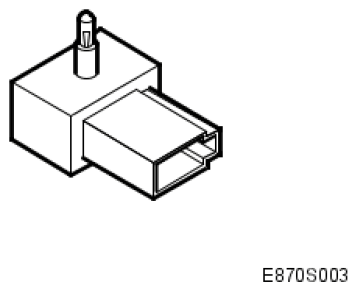

CABIN TEMPERATURE SENSOR REFERENCE
| Power supply, temperature sensor (NTC) | pin no. | 6 (H10-8) |
| Ground, temperature sensor, (NTC) | pin no. | 5 (H10-8) |
Supplied with 5V through a 6.8 kΩ resistor in the control module.
CONTROL MODULE REFERENCE

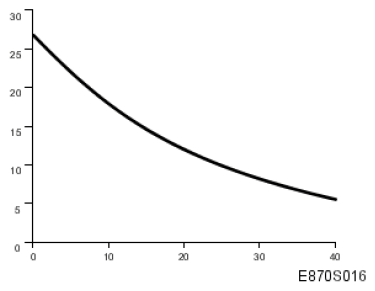

| °C (°F) | kΩ |
| 0 (32) | 26,7-29,3 |
| 10 (50) | 17,5-18,9 |
| 20 (68) | 11,8-12,5 |
| 25 (77) | 9,8-10,3 |
| 30 (86) | 8,1-8,5 |
| 40 (104) | 5,6-6,0 |
