Principal Components

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

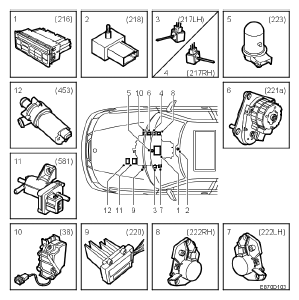

Fig 1: Identifying Principal Components
G05044809Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, ACC unit (216)
  2. Cabin temperature sensor (218)
  3. Mixed air temperature sensor, left (217LH)
  4. Mixed air temperature sensor, right (217RH)
  5. Solar sensor (223)
  6. Stepping motor, air distribution (221a)
  7. Stepping motor, air mixture, left (222LH)
  8. Stepping motor, air mixture, right (222RH)
  9. Ventilation fan control (220)
  10. Air recirculation motor (38)
  11. Solenoid valve, heat exchanger (581)
  12. Motor, coolant circulation pump (453)
  13. Control module, PPS (591)

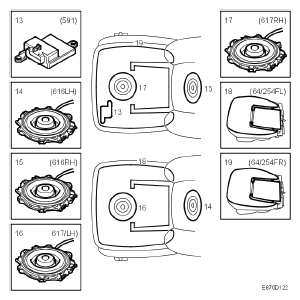

    Fig 2: Control Module, PPS (591) - System Diagram
    G05044810Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Motor, squab ventilation fan (616LH)
  15. Motor, squab ventilation fan (616RH)
  16. Motor, squab ventilation fan (617LH)
  17. Motor, squab ventilation fan (617RH)
  18. Heating pad, seat (64) / Temperature sensor, heating pad, seat (254FL)
  19. Heating pad, seat (64) / Temperature sensor, heating pad, seat (254FR)
